ESAT-4PD00506S1

4-Way Power Divider

0.5–6 GHz

SMA Female

(Front Side Connectors)

Quantity

Request for Quotation

Security policy

Delivery policy

Return policy

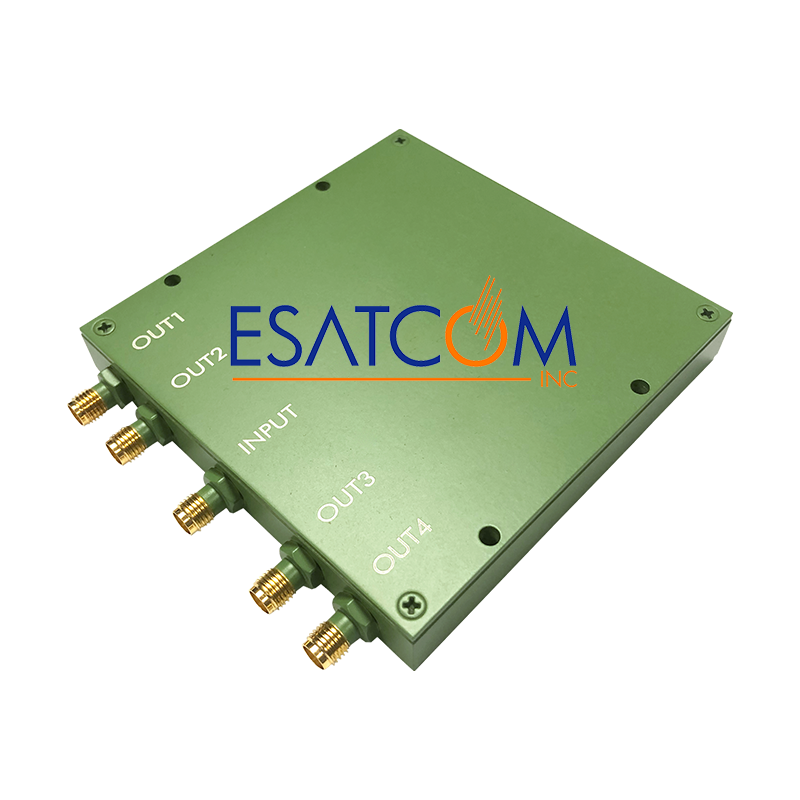

ESAT-4PD00506S1 4-Way Power Divider, 0.5–6 GHz, SMA-Female

The ESAT-4PD00506S1 is a 4-way SMA power divider designed for 0.5 to 6 GHz applications, with front-mounted ports for compact rack integration. It offers excellent isolation, minimal insertion loss, and tight amplitude and phase balance—ideal for Wi-Fi, cellular, PCS, UHF, L, S, and lower C-band systems.

Frequency Range: 0.5 – 6 GHz
Impedance: 50 Ohm
Return Loss: typ. 17.5 dB (Port S), typ. 19.1 dB (Ports 1–4)
Insertion Loss (above split): typ. 0.7 dB (500–3000 MHz), typ. 1.5 dB (3000–6000 MHz)
Isolation: typ. 23 dB
Amplitude Balance: typ. ±0.2 dB
Phase Balance: typ. ±4°
Input Power (CW): max. 30 W
Connector Type: SMA Female
Operating Temp: –55°C to +85°C
Weight: approx. 170 g
Finish: Green Paint
RoHS Compliant: Yes
