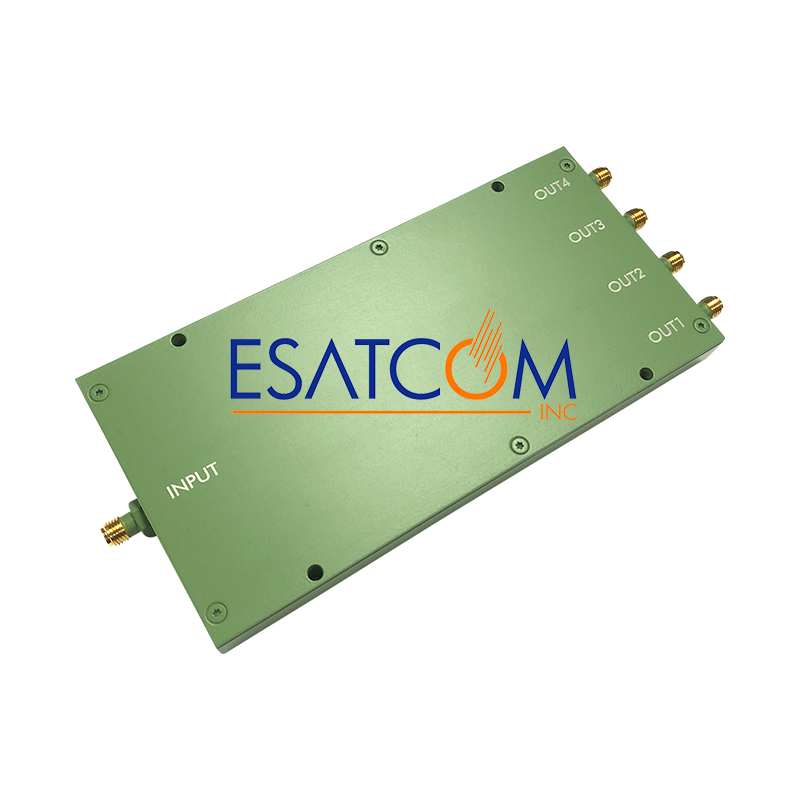

ESAT-4PD01265S 4-Way Power Divider, 1–26.5 GHz, SMA-Female

The ESAT-4PD01265S is a high-performance 4-way power divider covering 1 to 26.5 GHz with SMA female connectors. It features excellent isolation, return loss, and amplitude/phase balance across low, mid, and high bands—ideal for broadband and test applications in RF and microwave systems.

Frequency Range: 1 – 26.5 GHz
Impedance: 50 Ohm
Return Loss (Port S / Ports 1–2): min. 11.7 / 12.7–13.9 dB
Insertion Loss (above split): max. 1.6–3.2 dB
Isolation: min. 12–17 dB
Amplitude Balance: max. ±0.3–0.5 dB
Phase Balance: max. ±4°–6°
Input Power (CW): max. 10 W
Combining Power: max. 0.075 W/port
DC Current: max. 100 mA/port
Connector Type: SMA Female
Operating Temp: –55°C to +85°C
Storage Temp: –55°C to +100°C
Operating Humidity: 10–90% (non-condensing)
Weight: 212 g
Finish: Green Paint
RoHS/REACH Compliant: Yes
