ESAT-4PD18265S

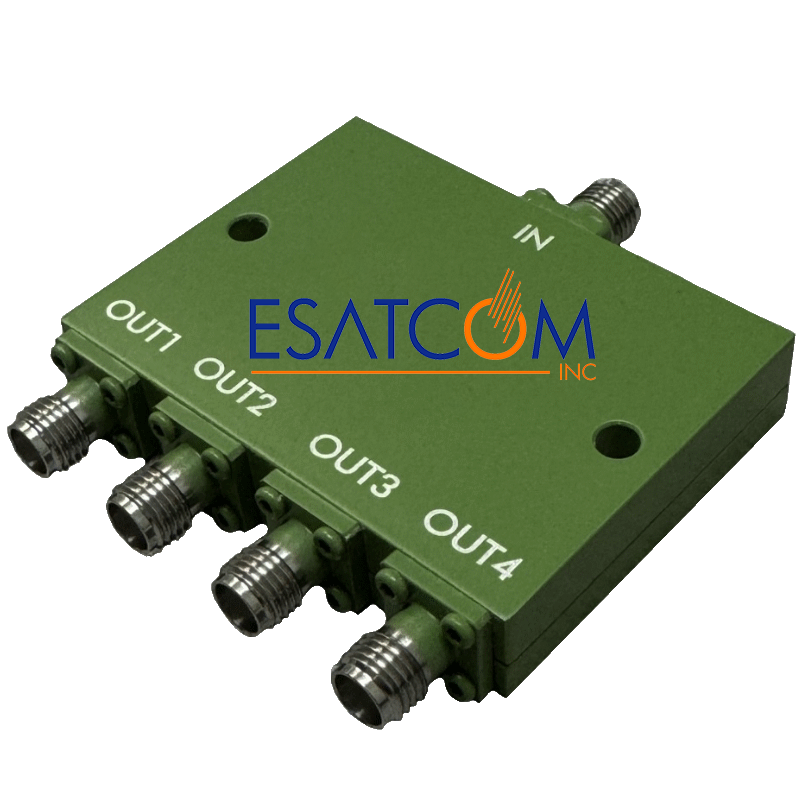

ESAT-4PD18265S 4-Way Power Divider, 18–26.5 GHz, SMA-Female

The ESAT-4PD18265S is a compact 4-way SMA power divider optimized for 18 to 26.5 GHz operation. It offers excellent return loss, high isolation, and tight amplitude and phase balance—ideal for X, Ku, and Ka-Band RF systems and test setups.Frequency Range: 18 – 26.5 GHz
Impedance: 50 Ohm
Return Loss (Port S / Ports 1–2): min. 12.7 / 13.7 dB
Insertion Loss (above 6 dB): max. 1.5 dB
Isolation: min. 17 dB
Amplitude Unbalance: max. ±0.4 dB
Phase Unbalance: max. ±5°
Input Power (CW): max. 10 W
Connector Type: SMA Female
Operating Temp: –55°C to +85°C
Storage Temp: –55°C to +100°C
Operating Humidity: 10–90% (non-condensing)
Weight: 59.2 g
Finish: Green Paint
RoHS/REACH Compliant: Yes
Made in USA
