ESAT-4PD1840K

4-Way Power Divider

18–40 GHz

2.92mm Female

Quantity

Request for Quotation

Security policy

Delivery policy

Return policy

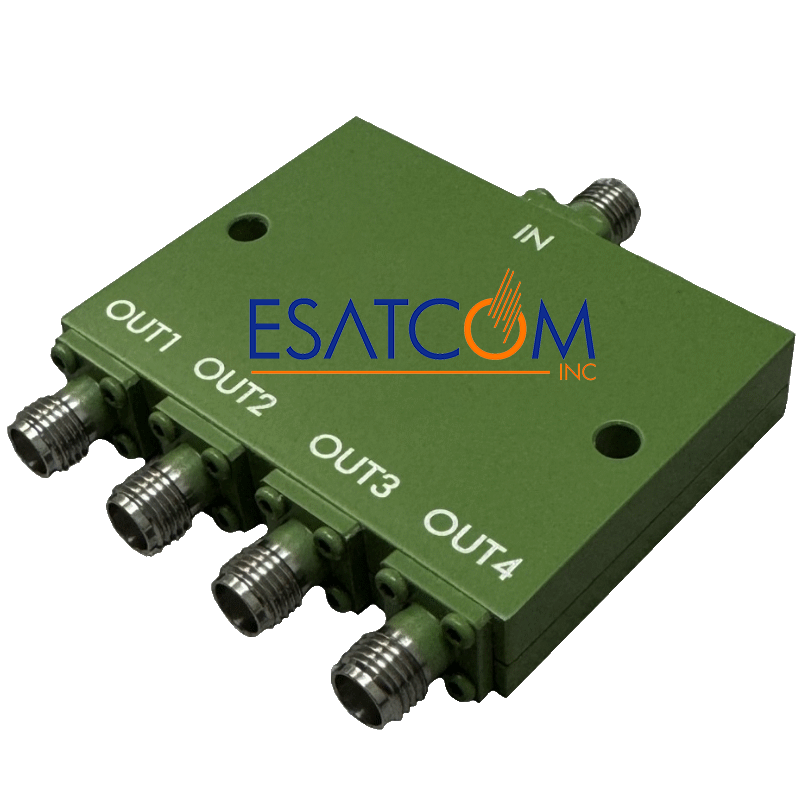

ESAT-4PD1840K 4-Way Power Divider, 18–40 GHz, 2.92mm Female

The ESAT-4PD1840K is a 4-way power divider covering 18 to 40 GHz with 2.92mm female connectors. It features excellent isolation, return loss, and amplitude/phase balance across both low and high bands—ideal for high-frequency microwave and mmWave test systems.

Frequency Range: 18 – 40 GHz
Impedance: 50 Ohm
Return Loss (All Ports): min. 12.7 dB
Insertion Loss (above 6 dB): max. 1.5 dB (18–26.5 GHz), max. 2.2 dB (26.5–40 GHz)
Isolation: min. 17 dB
Amplitude Unbalance: max. ±0.5 dB (low band), ±0.6 dB (high band)
Phase Unbalance: max. ±6° (low band), ±8° (high band)
Input Power (CW): max. 10 W
DC Current: max. 100 mA/port
Connector Type: 2.92mm Female
Operating Temp: –55°C to +85°C
Storage Temp: –55°C to +100°C
Operating Humidity: 10–90% (non-condensing)
Weight: 80 g
Finish: Green Paint
RoHS/REACH Compliant: Yes
