ESAT-4PD02185S

4-Way Power Divider

2–18.5 GHz

SMA Female

Quantity

Request for Quotation

Security policy

Delivery policy

Return policy

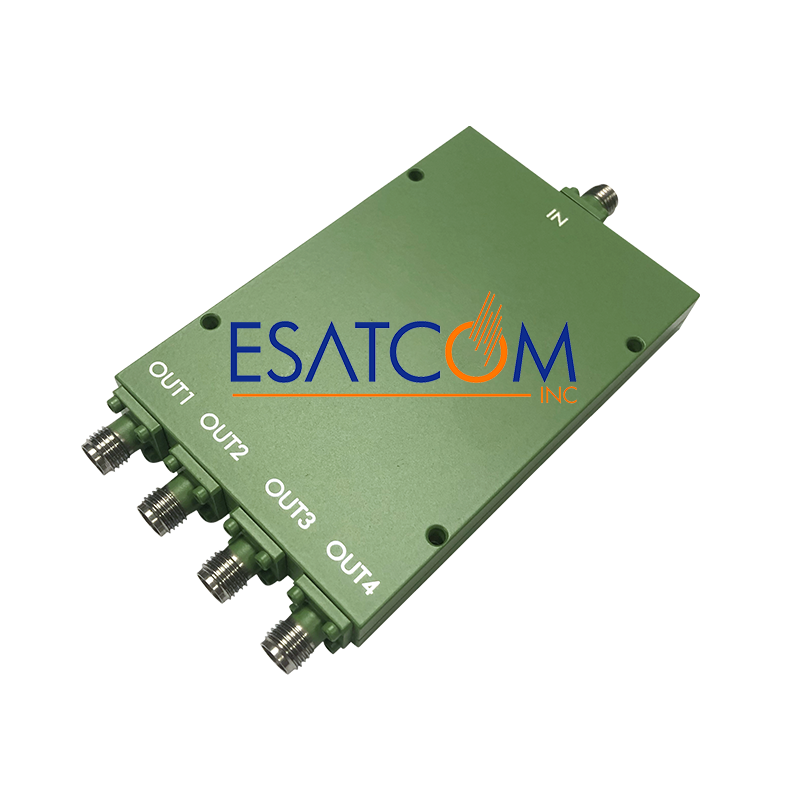

ESAT-4PD02185S 4-Way Power Divider, 2–18.5 GHz, SMA-Female

The ESAT-4PD02185S is a wideband 4-way power divider supporting 2 to 18.5 GHz with SMA female connectors. It features low insertion loss, high isolation, and excellent return loss—perfect for broadband RF splitting and combining in high-frequency test systems.

Frequency Range: 2 – 18.5 GHz
Impedance: 50 Ohm
Return Loss (Port S / Ports 1–4): min. 10.9 – 11.7 dB
Insertion Loss (above 6.02 dB): typ. 0.7–0.9 dB (max. 1.8–2.0 dB)
Isolation: min. 10–14 dB (typ. up to 31 dB)
Amplitude Balance: typ. 0.5 dB (max. 0.8 dB)
Phase Balance: typ. 3°, max. 12°
Input Power (CW): max. 30 W
Connector Type: SMA Female
Operating Temp: –55°C to +85°C
Storage Temp: –55°C to +100°C
Humidity: 10–90% non-condensing
Weight: 115 g
Finish: Green Paint
RoHS/REACH Compliant: Yes
