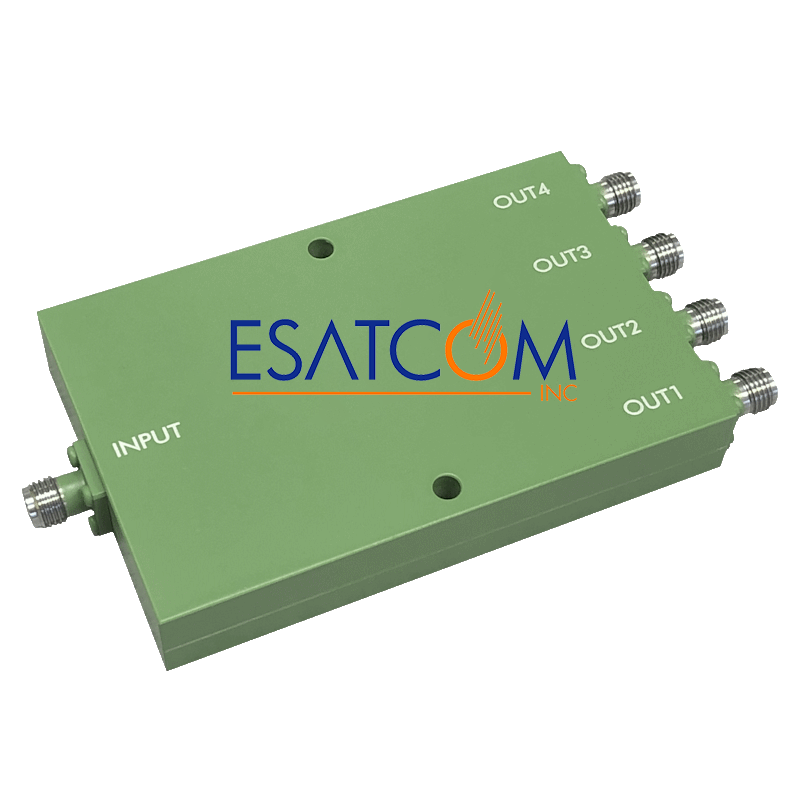

ESAT-4PD02265S 4-Way Power Divider, 2–26.5 GHz, SMA-Female

The ESAT-4PD02265S is a wideband 4-way SMA power divider covering 2 to 26.5 GHz. It delivers low insertion loss, excellent return loss, and high isolation across all sub-bands—ideal for broadband RF and microwave test setups.

Frequency Range: 2 – 26.5 GHz
Impedance: 50 Ohm
Return Loss (Typ.): up to 20 dB
Insertion Loss (Typ.): 0.5–2.0 dB
Isolation (Typ.): 16–19 dB
Amplitude Unbalance: typ. ±0.17 to ±0.5 dB
Phase Unbalance: typ. ±2° to ±7°
Input Power (CW): max. 10 W
Connector Type: SMA Female
Operating Temp: –55°C to +85°C
Storage Temp: –55°C to +100°C
Humidity: 10–90% non-condensing
Weight: 152 g
Finish: Green Paint
RoHS/REACH Compliant: Yes
