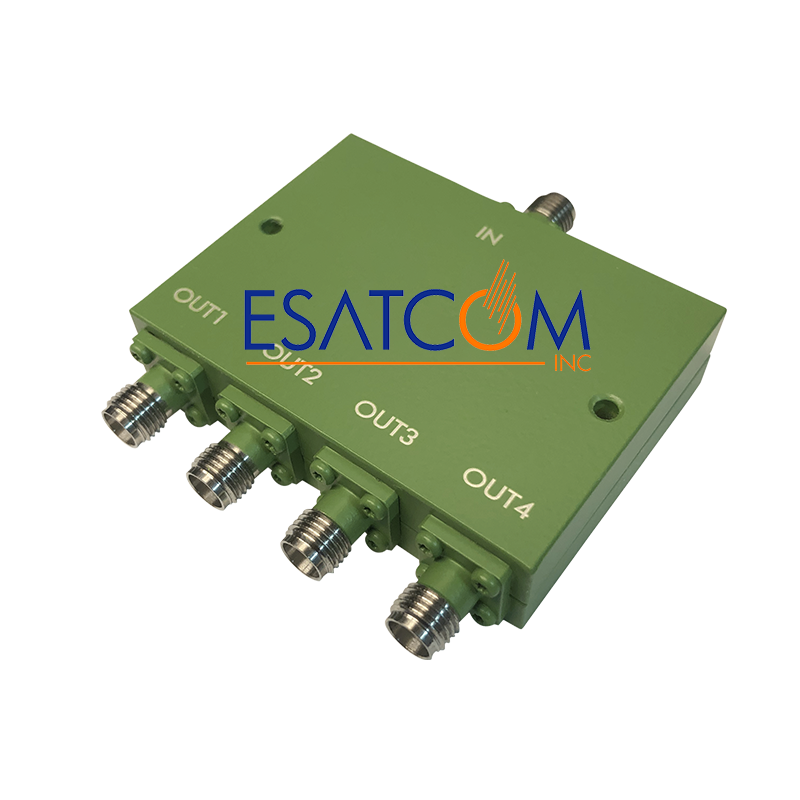

ESAT-4PD06265S 4-Way Power Divider, 6–26.5 GHz, SMA-Female
The ESAT-4PD06265S is a high-performance 4-way power divider covering 6 to 26.5 GHz. Featuring SMA female connectors, excellent isolation, and tight amplitude and phase balance, it is ideal for high-frequency RF and microwave signal distribution in lab and system applications.
Frequency Range: 6 – 26.5 GHz
Impedance: 50 Ohm
Return Loss (Port S / Port 1–2): min. 10.0 – 16.0 dB
Insertion Loss (above 6 dB): max. 1.2 – 1.9 dB
Isolation: min. 16 dB
Amplitude Unbalance: max. ±0.4 dB
Phase Unbalance: max. ±6°
Input Power (CW): max. 10 W
Connector Type: SMA Female
Operating Temp: –55°C to +85°C
Storage Temp: –55°C to +100°C
Humidity: 10–90% (non-condensing)
Enclosure: Aluminum, green painted
Weight: 83 g
RoHS/REACH Compliant: Yes
Made in USA
