ESAT-6PD18265S

6-Way Power Divider

18–26.5 GHz

SMA Female

Quantity

Request for Quotation

Security policy

Delivery policy

Return policy

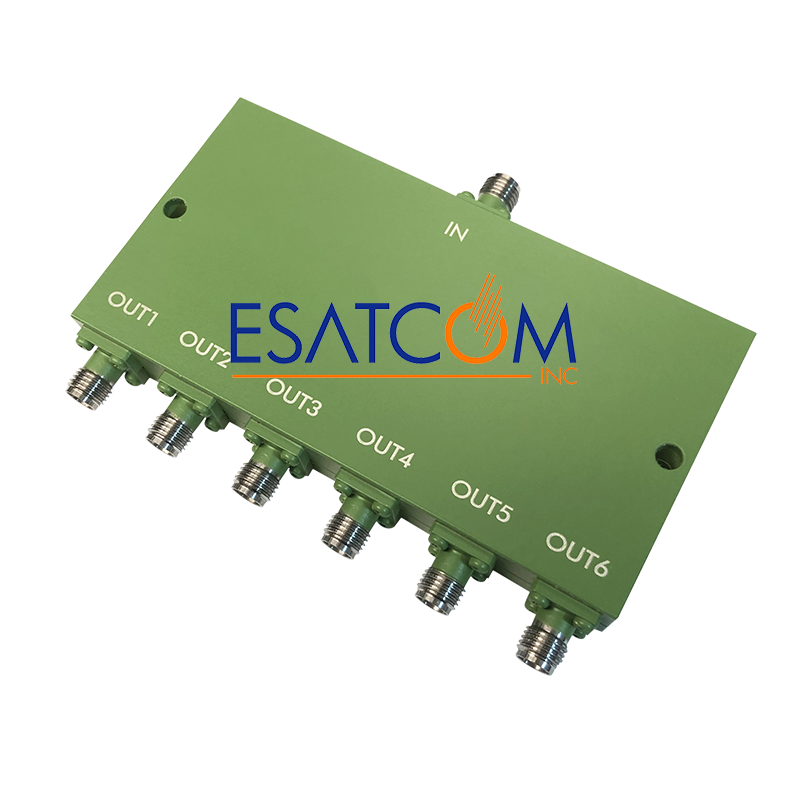

ESAT-6PD18265S 6-Way Power Divider, 18–26.5 GHz, SMA-Female

The ESAT-6PD18265S is a precision 6-way power divider operating across 18 to 26.5 GHz. Featuring SMA female connectors, excellent isolation, and low insertion loss, it's ideal for Ka-Band signal distribution in high-frequency RF and microwave systems.

Frequency Range: 18 – 26.5 GHz
Impedance: 50 Ohm
Return Loss (Port S / Ports 1–6): min. 13.7 / 12.0 dB
Insertion Loss (above 7.8 dB): typ. 1.4 dB (max. 1.9 dB)
Isolation: typ. 21.1 dB (min. 18 dB)
Amplitude Unbalance: typ. ±0.37 dB (max. ±0.5 dB)
Phase Unbalance: typ. ±5.9° (max. ±12°)
Input Power (CW): max. 10 W
Connector Type: SMA Female
Operating Temp: –55°C to +85°C
Storage Temp: –55°C to +100°C
Humidity: 10–90% (non-condensing)
Weight: 164 g
Finish: Green Paint
RoHS/REACH Compliant: Yes
