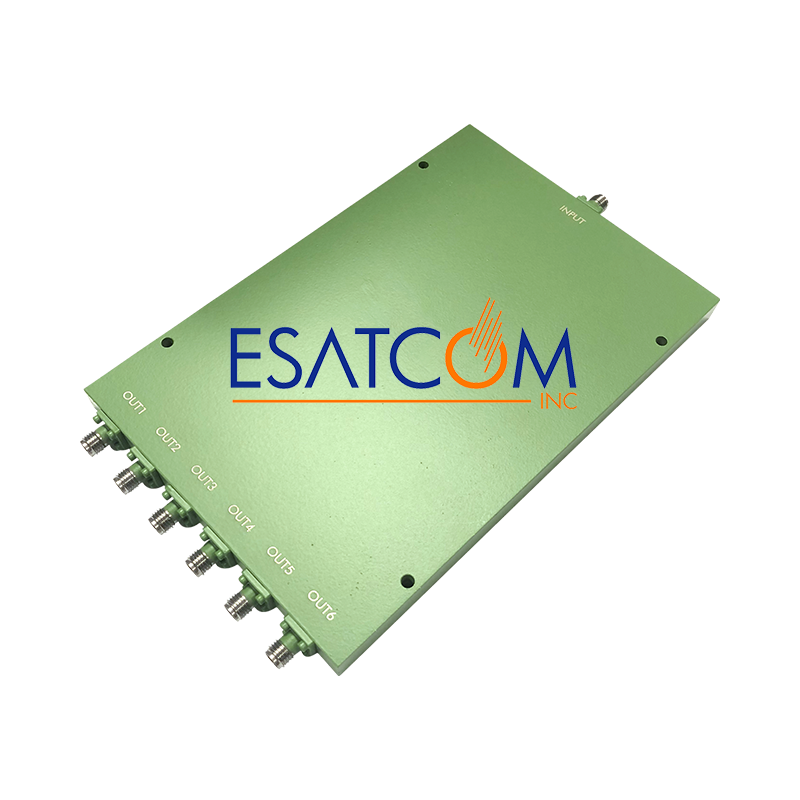

Esatcom ESAT-6PD0218S 6-Way Power Divider, 2–18 GHz, SMA-Female

The ESAT-6PD0218S is a wideband 6-way in-line power divider operating from 2 to 18 GHz. It features SMA female connectors, compact aluminum housing, and excellent electrical performance—optimized for S, C, X, and Ku-band systems in compact RF environments.

Frequency Range: 2 – 18 GHz
Impedance: 50 Ohm
Return Loss (Port S / Ports 1–6): typ. 12.0 / 18.3 dB
Insertion Loss (above 7.78 dB): typ. 1.4 dB (max. 3.4 dB)
Isolation: typ. 18 dB (min. 15 dB)
Amplitude Balance: typ. 0.3 dB (max. 1.1 dB)
Phase Balance: typ. 4° (max. 14°)
Input Power (CW): max. 30 W
Connector Type: SMA Female
Operating Temp: –55°C to +85°C
Storage Temp: –55°C to +100°C
Humidity: 10–90% non-condensing
Dimensions: 6.00 × 4.00 × 0.38 in
Weight: ~425 g (15 oz)
Enclosure: Aluminum, green painted
RoHS/REACH Compliant: Yes
