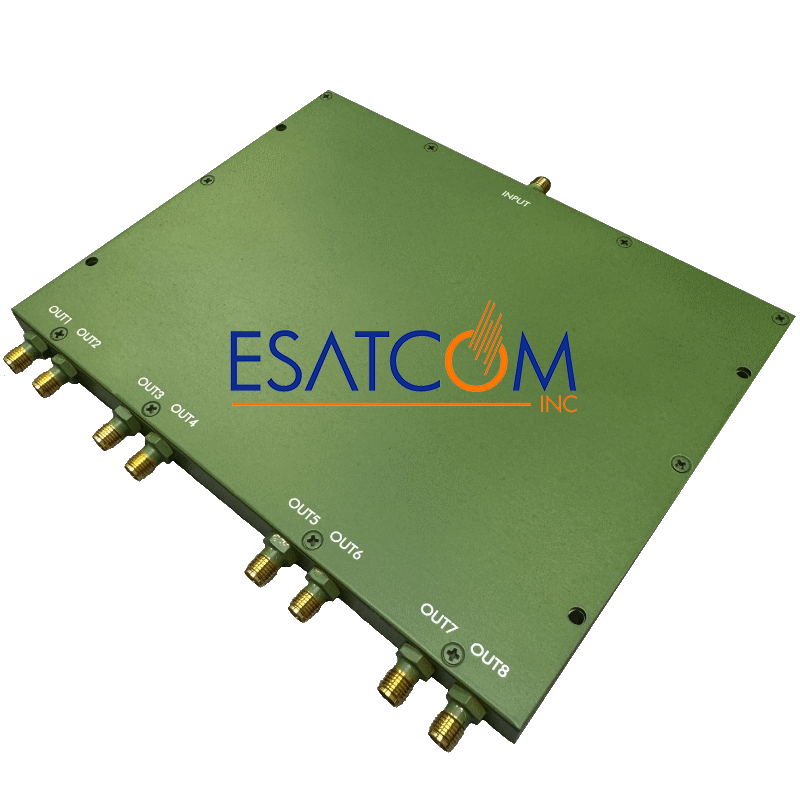

ESAT-8PD00506S 8-Way Power Divider, 0.5–6 GHz, SMA Female
The ESAT-8PD00506S is an 8-way power divider covering 500 MHz to 6 GHz with SMA female connectors. It offers excellent isolation, low insertion loss, and tight amplitude/phase balance in a compact, rack-mountable aluminum enclosure. Made in the USA and fully RoHS compliant.
Frequency Range: 500 – 6000 MHz
Impedance: 50 Ohm
Return Loss: typ. 16.3 dB (Port 1–8), typ. 12.7 dB (Port S)
Insertion Loss: typ. 1.0 dB (500–3000 MHz), typ. 1.9 dB (3000–6000 MHz)
Isolation: typ. 20 dB
Amplitude Balance: typ. 0.4 dB
Phase Balance: typ. 6°
Input Power (CW): max. 30 W
Connector Type: SMA Female
Operating Temp: –40°C to +85°C
Storage Temp: –55°C to +100°C
Humidity: 10–90% non-condensing
Dimensions: 6.50 × 4.97 × 0.55 in
Weight: approx. 540 g (19 oz)
Enclosure: Aluminum, green painted
RoHS & REACH Compliant
Made in: USA
