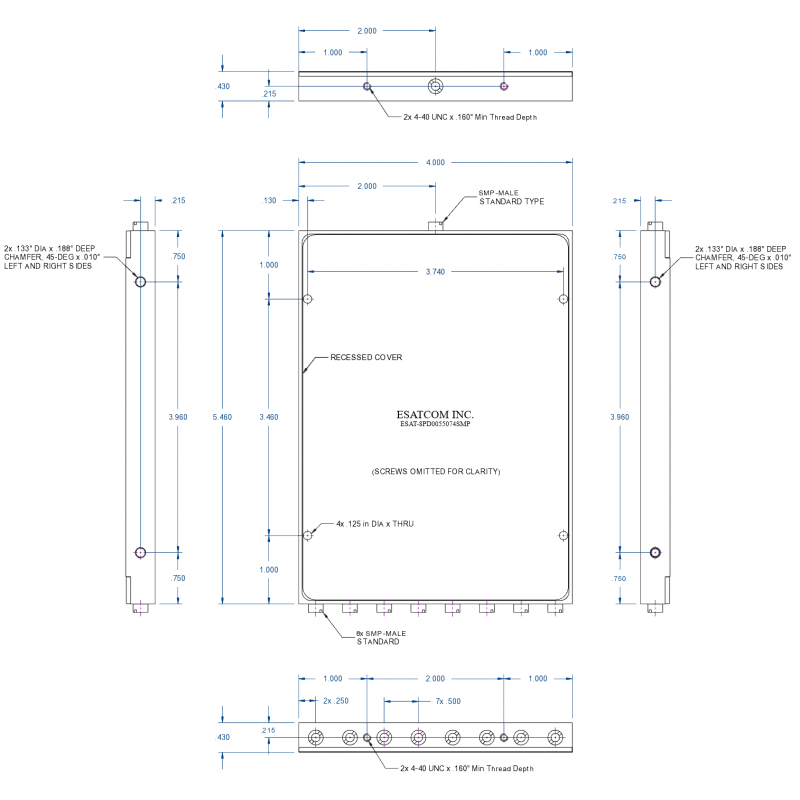

ESAT-8PD0055074SMP 8-Way Power Divider, 0.55–7.4 GHz, SMP Male

The ESAT-8PD0055074SMP is an 8-way power divider operating from 550 MHz to 7.4 GHz, optimized for Wi-Fi 6E and dense system layouts. Featuring SMP male connectors and recessed cover design to reduce RF leakage, it offers excellent isolation, flat loss, and balance—ideal for compact RF distribution.

Frequency Range: 550 – 7400 MHz
Impedance: 50 Ohm
Return Loss: typ. 17 dB (Ports 1–8), typ. 16 dB (Port S)
Insertion Loss: typ. 2.4 dB (above 6.02 dB theoretical)
Isolation: typ. 20 dB
Amplitude Balance: typ. 0.3 dB
Phase Balance: typ. 4°
Input Power (CW): max. 30 W
Connector Type: SMP Male
Operating Temp: –10°C to +65°C
Storage Temp: –55°C to +100°C
Humidity: 10–90% non-condensing
Environment: Indoor use only
Weight: approx. 567 g (20 oz)
Enclosure: Aluminum with recessed cover
Finish: Clear chemical film
RoHS & REACH Compliant

Made in: USA
