ESAT-8PD006074S1

8-Way Power Divider

0.6–7.4 GHz

SMA Male

Front Connectors

Quantity

Request for Quotation

Your Query is sent.

  •     *Required Fields

Loading



Security policy



Delivery policy



Return policy

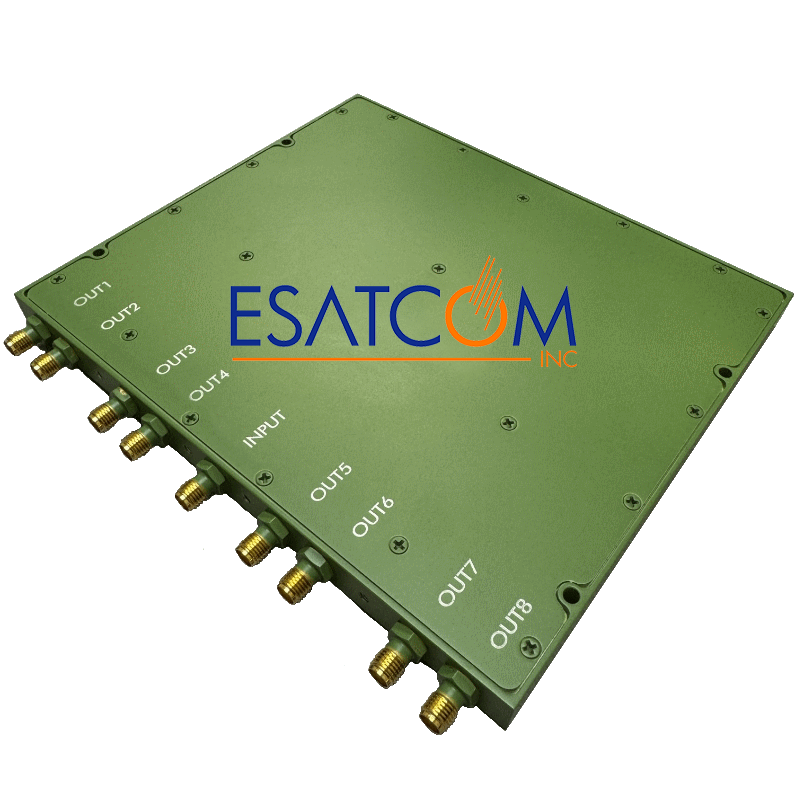

ESAT-8PD006074S1 8-Way Power Divider, 0.6–7.4 GHz, SMA Female

The ESAT-8PD006074S1 is an 8-way power divider covering 600 MHz to 7.4 GHz with SMA female connectors. It offers excellent isolation, flat insertion loss, and superior balance. The rugged enclosure features multiple mounting options, making it ideal for Wi-Fi 6E and UHF test systems.

Frequency Range: 600 – 7400 MHz
Impedance: 50 Ohm
Return Loss: typ. 17 dB (Port 1–8), typ. 16 dB (Port S)
Insertion Loss: typ. 2.4 dB (above 9 dB theoretical)
Isolation: typ. 20 dB
Amplitude Balance: typ. 0.3 dB
Phase Balance: typ. 4°
Input Power (CW): max. 30 W
Connector Type: SMA Female
Operating Temp: –10°C to +65°C
Storage Temp: –55°C to +100°C
Humidity: 10–90% non-condensing
Weight: approx. 567 g (20 oz)
Enclosure: Aluminum, green paint
RoHS & REACH Compliant

Made in: USA

ESAT-8PD006074S1
Type
Power Divider
