ESAT-8PD00704B 8-Way Power Divider, 700–4000 MHz, BNC Female

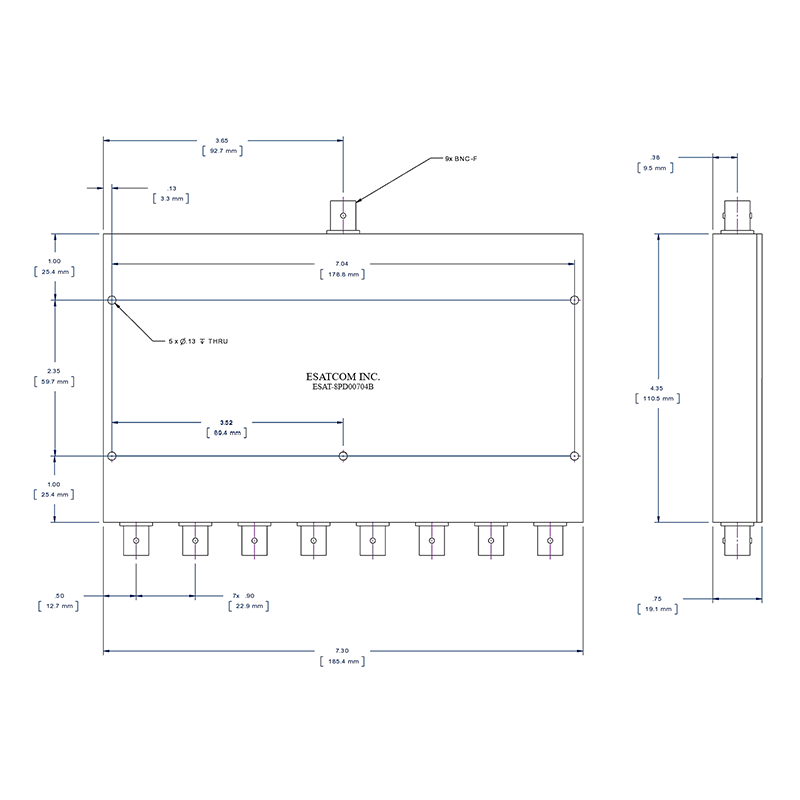

The ESAT-8PD00704B is an 8-way Wilkinson power divider covering 700 MHz to 4 GHz with BNC female connectors. It features flat insertion loss, high isolation, and balanced output, housed in a 7.3" wide aluminum enclosure designed for side-by-side 19" rack installation.

Frequency Range: 700 – 4000 MHz
Impedance: 50 Ohm
Return Loss: typ. 20 dB (Port 1–8), typ. 15 dB (Port S)
Insertion Loss: typ. 1.5 dB (above 9.03 dB theoretical)
Isolation: typ. 22 dB
Amplitude Balance: typ. 0.3 dB
Phase Balance: typ. 6°
Input Power (CW): max. 30 W
Connector Type: BNC Female
Operating Temp: –40°C to +85°C
Storage Temp: –55°C to +100°C
Humidity: 10–90% non-condensing
Weight: approx. 370 g (13 oz)
Enclosure: Aluminum, green painted
RoHS & REACH Compliant
Made in: USA

ESAT-8PD00704B
Type
Power Divider
