ESAT-8PD1840K

8-Way Power Divider

18–40 GHz

2.92mm Female

Quantity

Request for Quotation

Your Query is sent.

  •     *Required Fields

Loading



Security policy



Delivery policy



Return policy

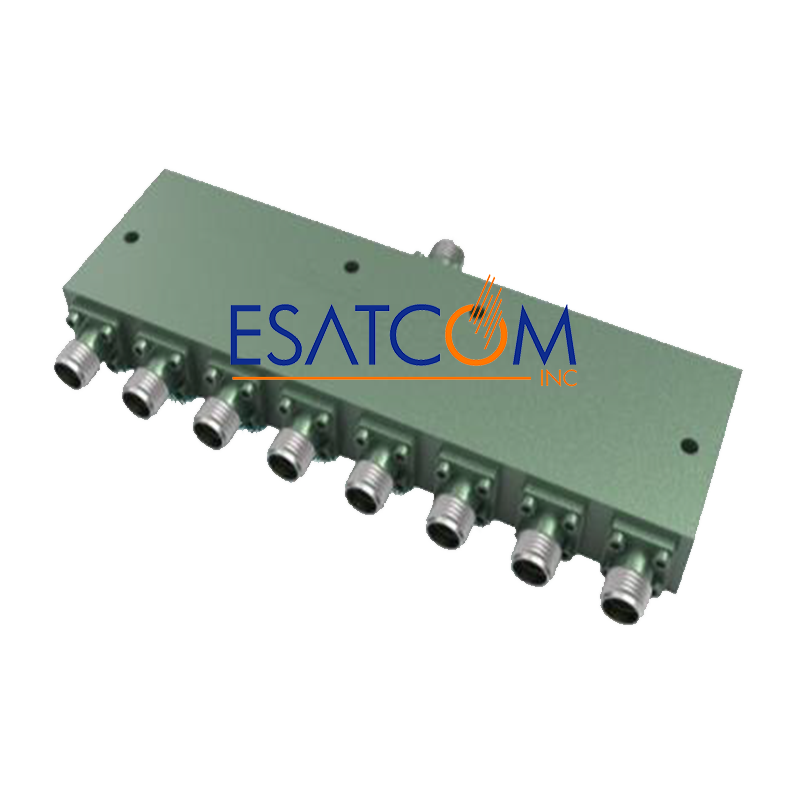

ESAT-8PD1840K 8-Way Power Divider, 18–40 GHz, 2.92mm Female

The ESAT-8PD1840K is an 8-way power divider covering 18 to 40 GHz with 2.92mm female connectors. Designed for high-frequency applications, it delivers excellent isolation, low insertion loss, and minimal amplitude and phase imbalance in a compact indoor-use aluminum enclosure.

Frequency Range: 18000 – 40000 MHz (18–40 GHz)
Impedance: 50 Ohm
Return Loss (Port S & 1–8): ≥ 11.7 dB
Insertion Loss above 9 dB: max. 2.4 dB (Low Band), max. 3.2 dB (High Band)
Isolation: min. 16 dB
Amplitude Unbalance: max. ±0.6 dB (Low), ±0.8 dB (High)
Phase Unbalance: max. ±8° (Low), ±10° (High)
Input Power (CW): max. 10 W
Connector Type: 2.92mm Female
Operating Temp: –55°C to +85°C
Storage Temp: –55°C to +100°C
Humidity: 10–90% (non-condensing)
Weight: approx. 230 g (8.1 oz)
Enclosure: Aluminum, green painted
RoHS & REACH Compliant
Made in: USA

ESAT-8PD1840K
Type
Power Divider
