ESAT-8PD203000MS

ESAT-8PD203000MS 8-Way Power Divider, 20–3000 MHz, SMA Female

The ESAT-8PD203000MS is an 8-way power divider covering 20 to 3000 MHz with SMA female connectors. Designed for indoor RF distribution systems, it features low insertion loss, excellent isolation, and tight amplitude balance in a compact aluminum housing with recessed cover to minimize RF leakage.

Frequency Range: 20 – 3000 MHz
Impedance: 50 Ohm
Return Loss: typ. 13.4 dB (Port S), typ. 13.7 dB (Ports 1–8)
Insertion Loss: typ. 4.1 dB (above 9.03 dB theoretical), max. 5.7 dB
Isolation: typ. 19.3 dB, min. 14 dB
Amplitude Balance: typ. ±0.45 dB, max. ±0.80 dB
Input Power (CW): max. 1 W
Connector Type: SMA Female
Operating Temp: –55°C to +85°C
Storage Temp: –55°C to +100°C
Humidity: 10–90% non-condensing
Environment: Indoor use only
Weight: approx. 170 g (6 oz)

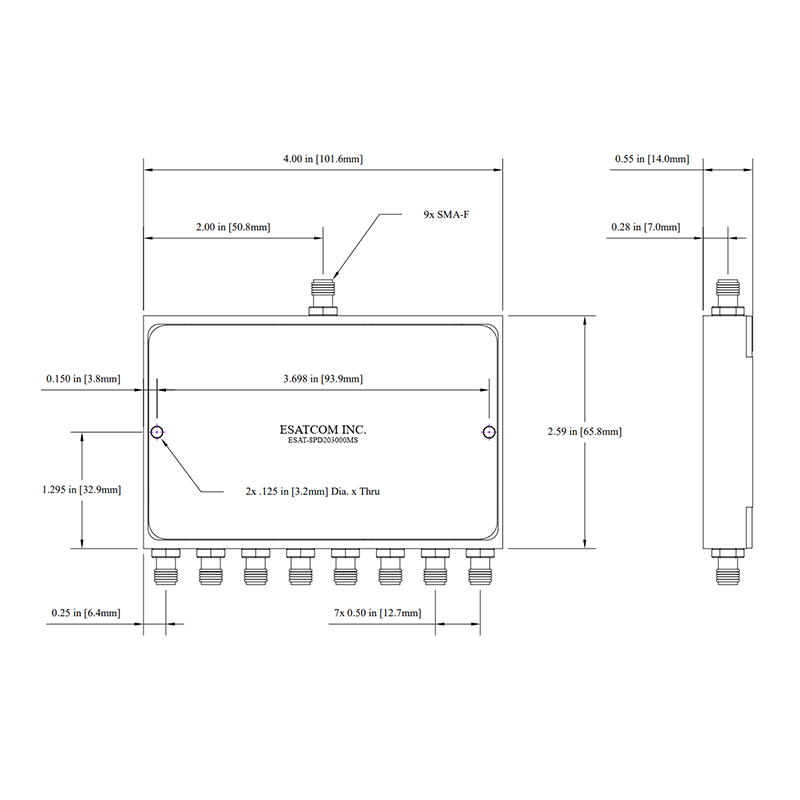

Enclosure: Aluminum, recessed cover
Finish: Clear chemical film
RoHS & REACH Compliant
Made in: USA
