ESAT-8PD0218S

8-Way Power Divider

2–18 GHz

SMA Female

Quantity

Request for Quotation

Your Query is sent.

  •     *Required Fields

Loading



Security policy



Delivery policy



Return policy

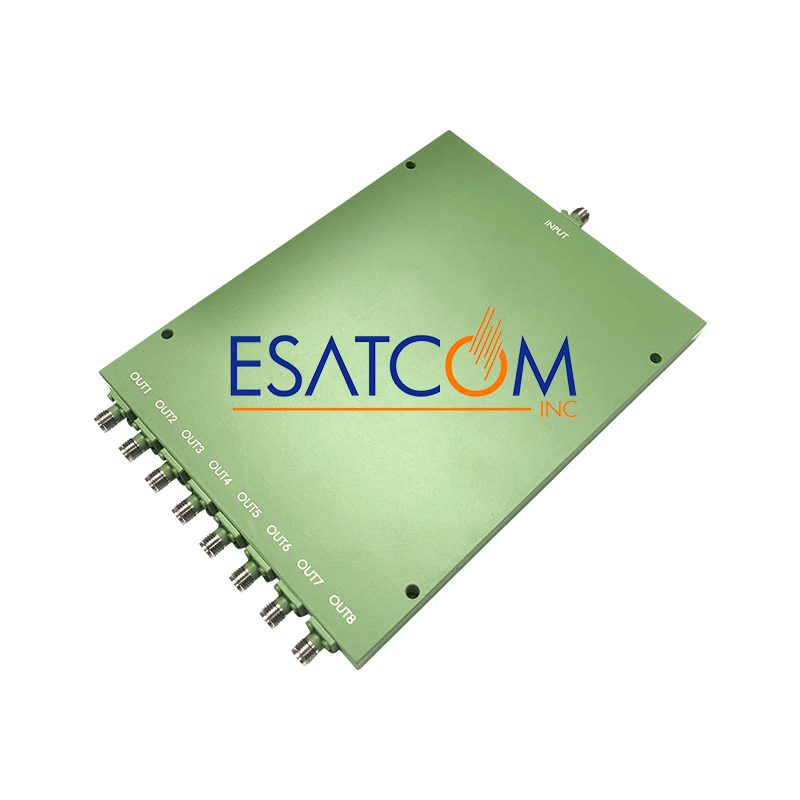

ESAT-8PD0218S 8-Way Power Divider, 2–18 GHz, SMA Female

The ESAT-8PD0218S is a rugged 8-way power divider designed for 2 to 18 GHz broadband coverage across S, C, X, and Ku bands. Housed in a compact aluminum enclosure with SMA connectors, it offers low loss, high isolation, and excellent balance—ideal for military and commercial RF systems.

Frequency Range: 2 – 18 GHz
Impedance: 50 Ohm
Return Loss: typ. 14 dB (Port S), typ. 20 dB (Port 1–8)
Insertion Loss: typ. 1.1 dB (above 9.03 dB theoretical), max. 2.4 dB
Isolation: typ. 19 dB, min. 16 dB
Amplitude Balance: typ. 0.4 dB, max. 1.0 dB
Phase Balance: typ. 2°, max. 10°
Input Power (CW): max. 25 W
Connector Type: SMA Female (stainless steel)
Operating Temp: –55°C to +85°C
Storage Temp: –55°C to +100°C
Humidity: 10–90% non-condensing
Environment: Indoor use only
Enclosure: Aluminum, green painted
Weight: approx. 425 g (15 oz)
RoHS & REACH Compliant
Made in: USA

ESAT-8PD0218S
Type
Power Divider

Specific References
