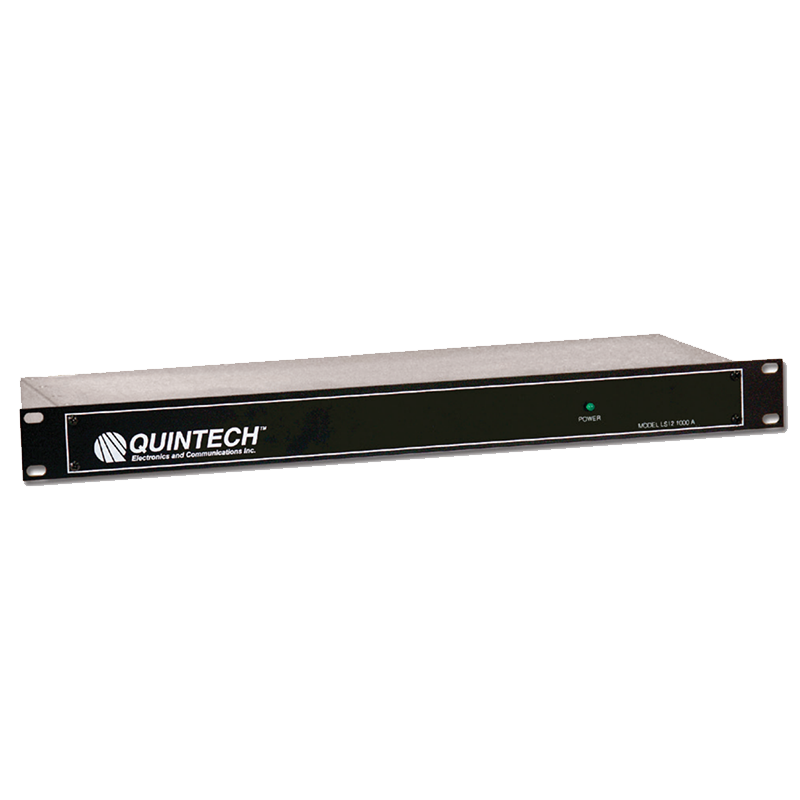

The Quintech LS161000A1FAA000 LS16 1000A is a commercial-quality 16-way active broadband RF splitter designed to distribute 5-1000 MHz signals to as many as 16 outputs. Its integrated amplification provides zero nominal insertion loss at 500 MHz, eliminating the need for an external distribution amplifier while maintaining consistent signal levels and repeatable performance across all RF ports.

The LS161000A1FAA000 is suitable for CATV, broadcast, monitoring, test, and broadband RF signal-distribution systems. The unit is housed in a compact 1 RU rackmount chassis with 75-ohm Type F connectors.

Specifications:

Product Type: 16-Way Active Broadband RF Splitter
Manufacturer: Quintech Electronics
Product Series: LS16 1000A
Part Number: LS161000A1FAA000
Frequency Range: 5-1000 MHz
Configuration: 1 Input, 16 Outputs
Impedance: 75 ohms
Input P1dB: +6 dBm
Insertion Loss: 0 dB ±2 dB at 500 MHz
Frequency Response: ±2.5 dB
Isolation: -16 dB
Input Return Loss: 13 dB
Output Return Loss: 14 dB
Noise Figure: 9 dB
RF Connectors: Type F, 75 ohms
Power Requirements: 18-24 VDC
Power Connection: 2-pin quick-connect barrier strip
Power Consumption: 13 W
Mounting: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.5 lb.
Gross Boxed Weight: 5 lb.
Certification: CE
Country of Manufacture: USA

Important: All unused RF output ports must be fitted with 75-ohm terminations.
