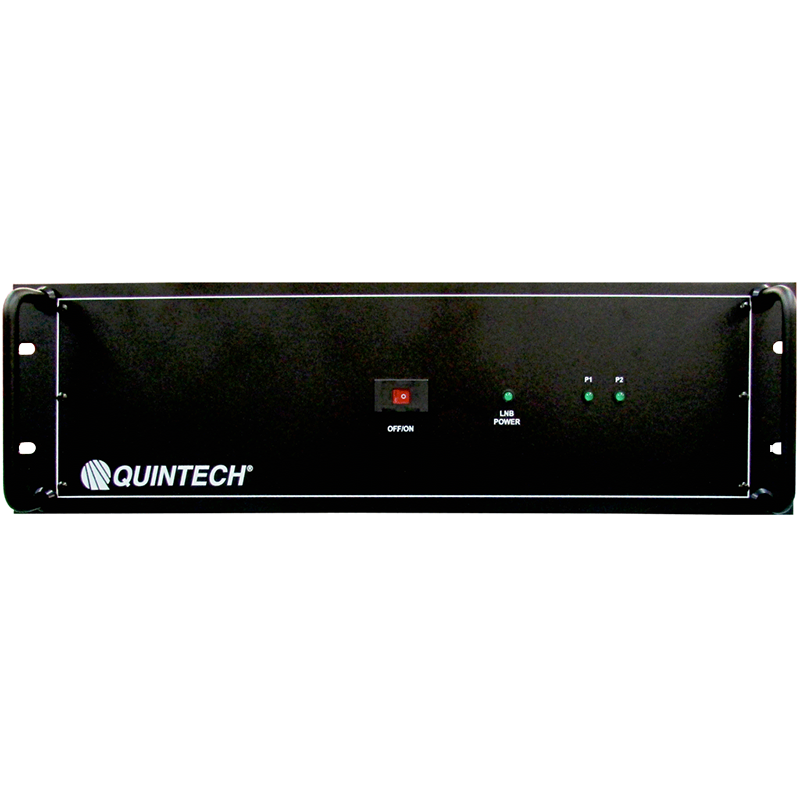

Quintech LS481000A1FAC000 5-1000 MHz 48-Way Active Broadband Splitter

Quintech LS481000A1FAC000 5-1000 MHz 48-Way Active Broadband Splitter

The Quintech LS481000A1FAC000 LS48 1000A is a commercial-quality 48-way active broadband RF splitter designed to distribute 5-1000 MHz signals to as many as 48 outputs. Its integrated amplification provides zero nominal insertion loss at 500 MHz, eliminating the need for an external distribution amplifier while maintaining consistent signal levels and repeatable performance across all RF ports.

The LS481000A1FAC000 is suitable for CATV, broadcast, monitoring, test, and broadband RF signal-distribution systems. The unit is housed in a 3 RU rackmount chassis with 75-ohm Type F connectors.

Specifications:

Product Type: 48-Way Active Broadband RF Splitter
Manufacturer: Quintech Electronics
Product Series: LS48 1000A
Part Number: LS481000A1FAC000
Frequency Range: 5-1000 MHz
Configuration: 1 Input, 48 Outputs
Impedance: 75 ohms
P1dB: +3 dBm
Insertion Loss: 0 dB ±2 dB at 500 MHz
Frequency Response: ±2 dB
Isolation: -16 dB
Input Return Loss: 14 dB
Output Return Loss: 15 dB
Noise Figure: 13 dB
RF Connectors: Type F, 75 ohms
Power Requirements: 18-24 VDC
Power Connection: 2-pin quick-connect barrier strip
Power Consumption: 20 W
Mounting: 3 RU rackmount
Dimensions: 5.25 in. H × 19 in. W × 20 in. D
Net Weight: 9.5 lb.
Gross Boxed Weight: 14.5 lb.
Certification: CE

Important: All unused RF output ports must be fitted with 75-ohm terminations.

Available now at Esatcom Inc. Please contact us for pricing and lead time.
