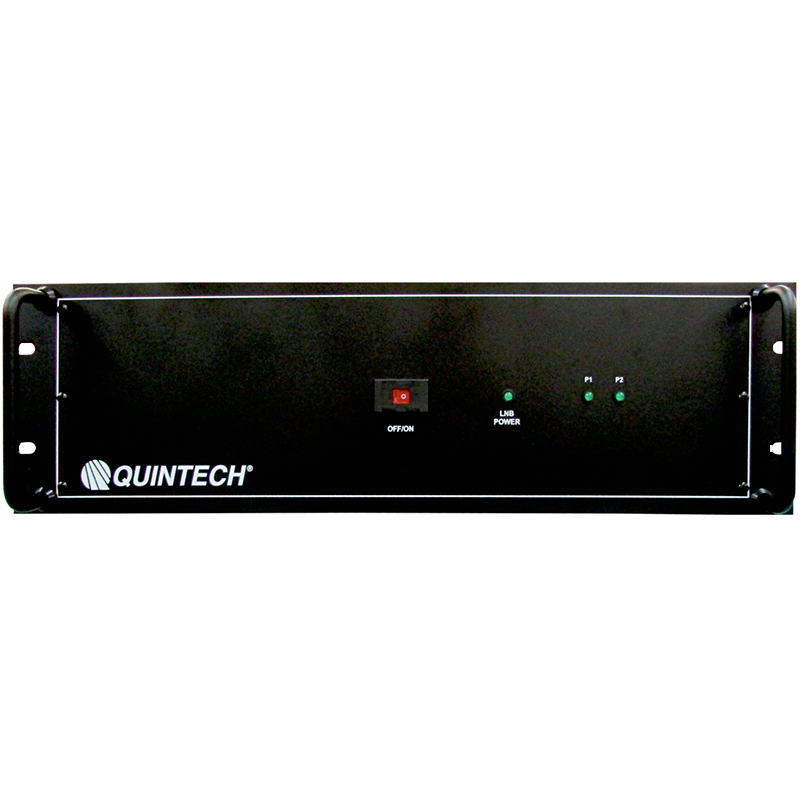

The Quintech LC641000A1FAC000 LC64 1000A is a commercial-quality 64-way active broadband RF combiner designed to combine as many as 64 signals into a single output over the 5-1000 MHz frequency range. Its integrated amplification provides zero nominal insertion loss at 500 MHz while maintaining consistent signal levels, impedance matching, isolation, and repeatable performance across all RF ports.

The LC641000A1FAC000 is suitable for CATV, broadcast, monitoring, test, and broadband RF signal-distribution systems requiring multiple inputs to be combined into one output. The unit is housed in a 3 RU rackmount chassis with 75-ohm Type F connectors.

Specifications:

Product Type: 64-Way Active Broadband RF Combiner
Manufacturer: Quintech Electronics
Product Series: LC64 1000A
Part Number: LC641000A1FAC000
Frequency Range: 5-1000 MHz
Configuration: 64 Inputs, 1 Output
Impedance: 75 ohms
P1dB: -2 dBm per input
Insertion Loss: 0 dB ±2 dB at 500 MHz
Frequency Response: ±2.5 dB
Isolation: -20 dB
Input Return Loss: 17 dB
Output Return Loss: 11 dB
Noise Figure: 19 dB
RF Connectors: Type F, 75 ohms
Power Requirements: 18-24 VDC
Power Connection: 2-pin quick-connect barrier strip
Power Consumption: 24 W
Mounting: 3 RU rackmount
Dimensions: 5.25 in. H × 19 in. W × 20 in. D
Net Weight: 10 lb.
Gross Boxed Weight: 15.4 lb.
Certification: CE

Important: All unused RF input ports must be fitted with 75-ohm terminations.

Available now at Esatcom Inc. Please contact us for pricing and lead time.
