Quintech LSC041000F1A000 5-1000 MHz 4-Way Passive Splitter/Combiner

Quintech LSC041000F1A000 5-1000 MHz 4-Way Passive Splitter/Combiner

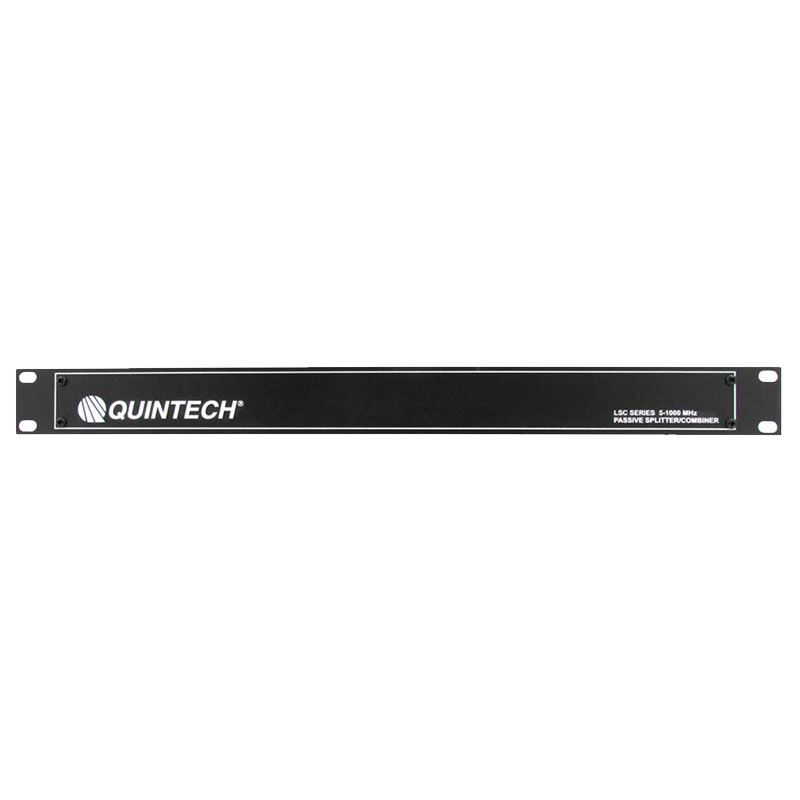

The Quintech LSC041000F1A000 LSC4 1000P is a commercial-quality 4-way passive broadband RF splitter/combiner operating over the 5-1000 MHz frequency range. Its bidirectional design can distribute one RF signal to four outputs or combine as many as four RF signals into one output with consistent impedance matching, isolation, and repeatable performance across all ports.

The LSC041000F1A000 requires no external power and is suitable for CATV, broadcast, monitoring, test, and broadband RF signal-distribution systems. The unit is housed in a compact 1 RU rackmount chassis with 75-ohm Type F connectors.

Specifications:

Product Type: 4-Way Passive Broadband RF Splitter/Combiner
Manufacturer: Quintech Electronics
Product Series: LSC4 1000P
Part Number: LSC041000F1A000
Frequency Range: 5-1000 MHz
Splitter Configuration: 1 Input, 4 Outputs
Combiner Configuration: 4 Inputs, 1 Output
Impedance: 75 ohms
Insertion Loss: 7.5 dB ±1 dB
Frequency Response: ±2 dB
Isolation: -16 dB
Return Loss: 14 dB
RF Connectors: Type F, 75 ohms
Power Requirement: None - passive design
Mounting: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2 lb.
Gross Boxed Weight: 3 lb.
Certification: CE
Country of Manufacture: USA

Important: All unused RF ports must be fitted with 75-ohm terminations.

Available now at Esatcom Inc. Please contact us for pricing and lead time.
