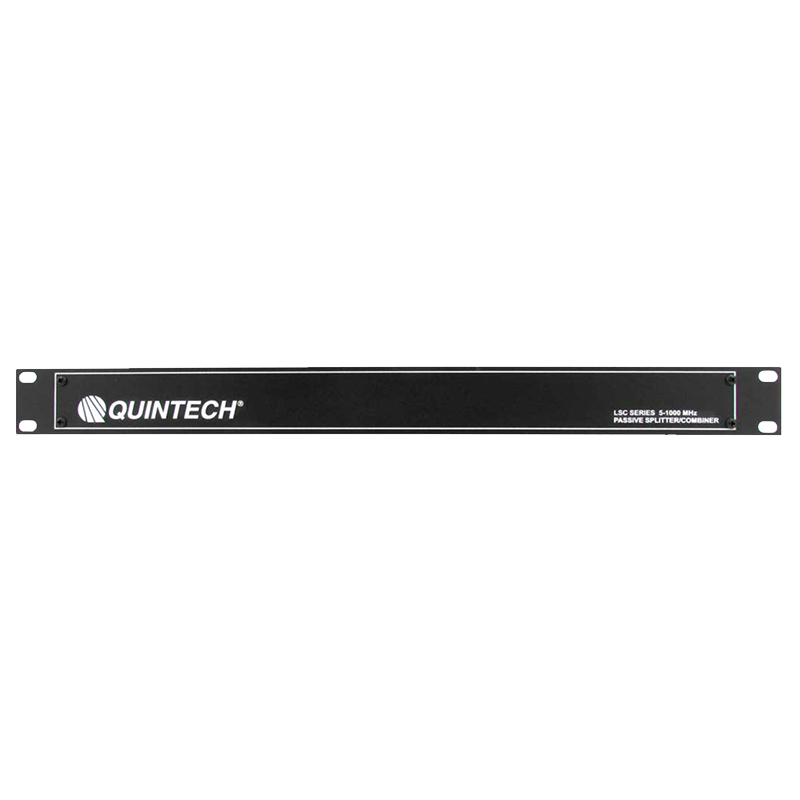

Quintech LSC081000F1A000 5–1000 MHz 8-Way Passive Splitter/Combiner

Quintech LSC081000F1A000 5–1000 MHz 8-Way Passive Splitter/Combiner

The Quintech LSC081000F1A000 (LSC8 1000P) is a commercial-quality 8-way passive RF splitter/combiner designed for broadband signal distribution from 5 to 1000 MHz. Its bidirectional design can divide one RF signal among eight outputs or combine up to eight RF signals into a single output.

Built with Quintech proprietary microstrip and surface-mount technology, the LSC081000F1A000 delivers repeatable performance across all input/output ports. The unit features 75-ohm Type F connectors and a compact 1 RU rackmount enclosure for broadcast, CATV, telecommunications, laboratory and RF signal-management applications. All unused RF ports require 75-ohm terminations.

Specifications:

Product Type: 8-Way Passive RF Splitter/Combiner
Manufacturer: Quintech Electronics
Product Series: LSC8 1000P
Part Number: LSC081000F1A000
Frequency Range: 5–1000 MHz
Impedance: 75 ohms
Insertion Loss: 11.5 ± 2 dB
Frequency Response: ±2 dB
Isolation: –18 dB
Return Loss: 15 dB
RF Connectors: Type F, 75 ohms
Mechanical: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.5 lb.
Gross Boxed Weight: 3.5 lb.
Certification: CE
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
