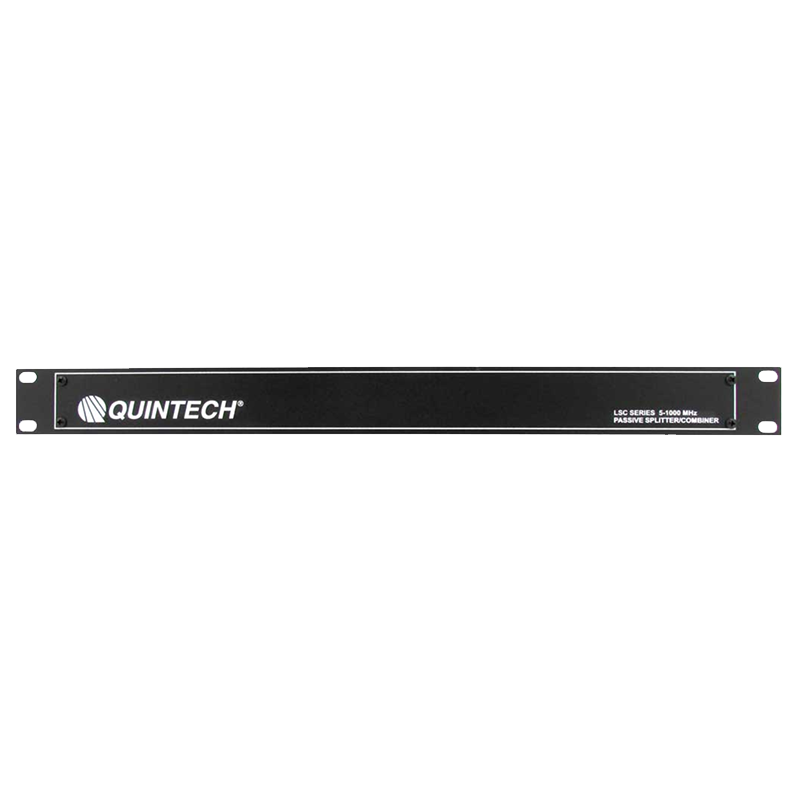

Quintech LSC161000F1A000 5-1000 MHz 16-Way Passive Splitter/Combiner

Quintech LSC161000F1A000 5-1000 MHz 16-Way Passive Splitter/Combiner

The Quintech LSC161000F1A000 (LSC16 1000P) is a commercial-quality 16-way passive RF splitter/combiner designed for broadband signal distribution from 5 to 1000 MHz. Its bidirectional configuration can distribute one RF signal to 16 outputs or combine as many as 16 RF signals into a single output.

Built with Quintech proprietary microstrip and surface-mount technology, the LSC161000F1A000 provides repeatable performance across its entire frequency range and all input/output ports. It features 75-ohm Type F connectors and a compact 1 RU rackmount chassis for broadcast, CATV, telecommunications, laboratory and RF signal-management applications. All unused RF ports require 75-ohm terminations.

Specifications:

Product Type: 16-Way Passive RF Splitter/Combiner
Manufacturer: Quintech Electronics
Product Series: LSC16 1000P
Part Number: LSC161000F1A000
Frequency Range: 5-1000 MHz
Impedance: 75 ohms
Insertion Loss: 15 ± 2.5 dB
Frequency Response: ±2.5 dB
Isolation: -20 dB
Return Loss: 14 dB
RF Connectors: Type F, 75 ohms
Mechanical: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.6 lb.
Gross Boxed Weight: 3.8 lb.
Certification: CE
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
