Quintech LSC481000F1C000 5-1000 MHz 48-Way Passive Splitter/Combiner

Quintech LSC481000F1C000 5-1000 MHz 48-Way Passive Splitter/Combiner

The Quintech LSC481000F1C000 (LSC48 1000P) is a commercial-quality 48-way passive RF splitter/combiner designed for high-density broadband signal distribution from 5 to 1000 MHz. Its bidirectional configuration can distribute one RF signal to 48 outputs or combine as many as 48 RF signals into a single output.

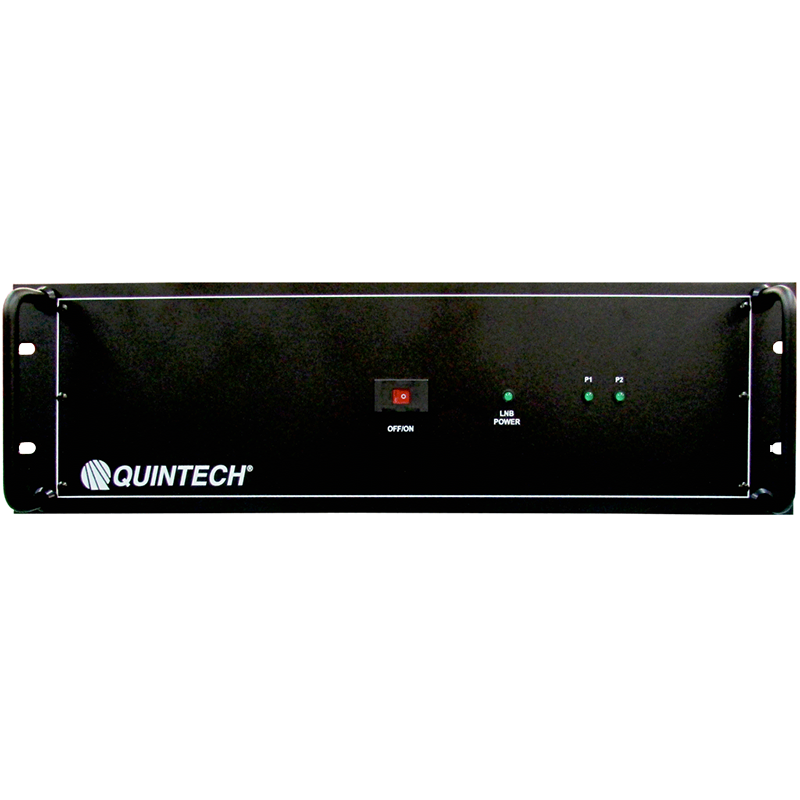

Built with Quintech proprietary microstrip and surface-mount technology, the LSC481000F1C000 provides repeatable performance across its entire frequency range and all input/output ports. It features 75-ohm Type F connectors and a rugged 3 RU rackmount chassis for broadcast, CATV, telecommunications, laboratory and RF signal-management applications. All unused RF output ports require 75-ohm terminations.

Specifications:

Product Type: 48-Way Passive RF Splitter/Combiner
Manufacturer: Quintech Electronics
Product Series: LSC48 1000P
Part Number: LSC481000F1C000
Frequency Range: 5-1000 MHz
Impedance: 75 ohms
Insertion Loss: 21 ± 2 dB at 500 MHz
Frequency Response: ±2 dB
Isolation: -16 dB
Return Loss: 13 dB
RF Connectors: Type F, 75 ohms
Mechanical: 3 RU rackmount
Dimensions: 5.25 in. H × 19 in. W × 20 in. D
Net Weight: 9 lb.
Gross Boxed Weight: 12 lb.
Certification: CE

Available now at Esatcom Inc. Please contact us for pricing and lead time.
