Quintech LSC641000F1C000 5-1000 MHz 64-Way Passive Splitter/Combiner

Quintech LSC641000F1C000 5-1000 MHz 64-Way Passive Splitter/Combiner

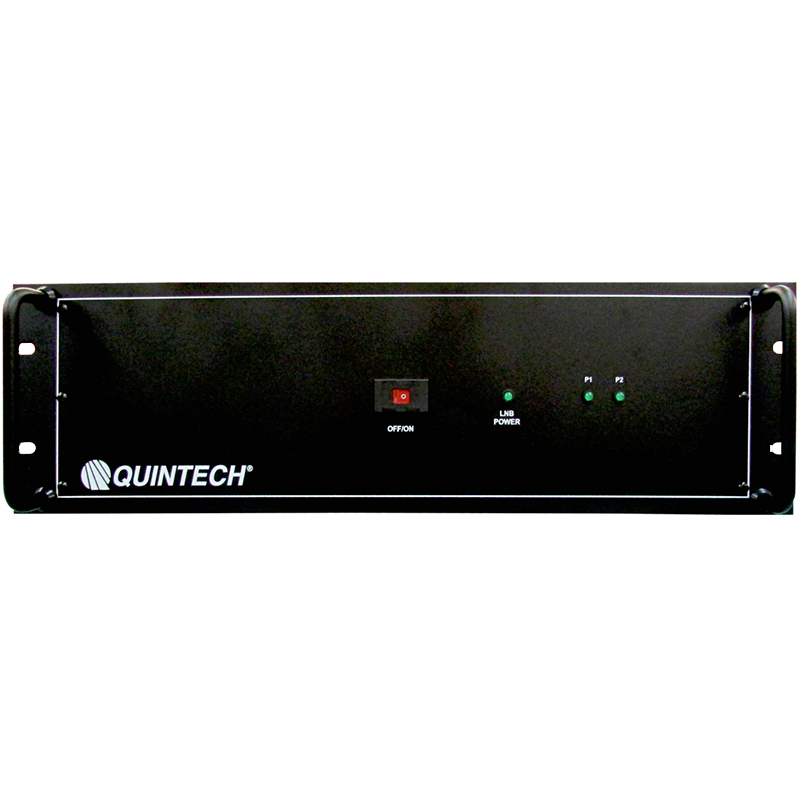

The Quintech LSC641000F1C000 (LSC64 1000P) is a commercial-quality 64-way passive RF splitter/combiner designed for high-density broadband signal distribution from 5 to 1000 MHz. Its bidirectional configuration can distribute one RF signal to 64 outputs or combine as many as 64 RF signals into a single output.

Built with Quintech proprietary stripline overlay and surface-mount technology, the LSC641000F1C000 provides repeatable performance across its entire frequency range and all input/output ports. It features 75-ohm Type F connectors and a rugged 3 RU rackmount chassis for broadcast, CATV, telecommunications, laboratory and RF signal-management applications. All unused RF ports require 75-ohm terminations.

Specifications:

Product Type: 64-Way Passive RF Splitter/Combiner
Manufacturer: Quintech Electronics
Product Series: LSC64 1000P
Part Number: LSC641000F1C000
Frequency Range: 5-1000 MHz
Impedance: 75 ohms
Insertion Loss: 23 ± 2.5 dB
Frequency Response: ±2.5 dB
Isolation: -20 dB
Return Loss: 12 dB
RF Connectors: Type F, 75 ohms
Mechanical: 3 RU rackmount
Dimensions: 5.25 in. H × 19 in. W × 20 in. D
Net Weight: 9.62 lb.
Gross Boxed Weight: 14 lb.
Certification: CE

Available now at Esatcom Inc. Please contact us for pricing and lead time.
