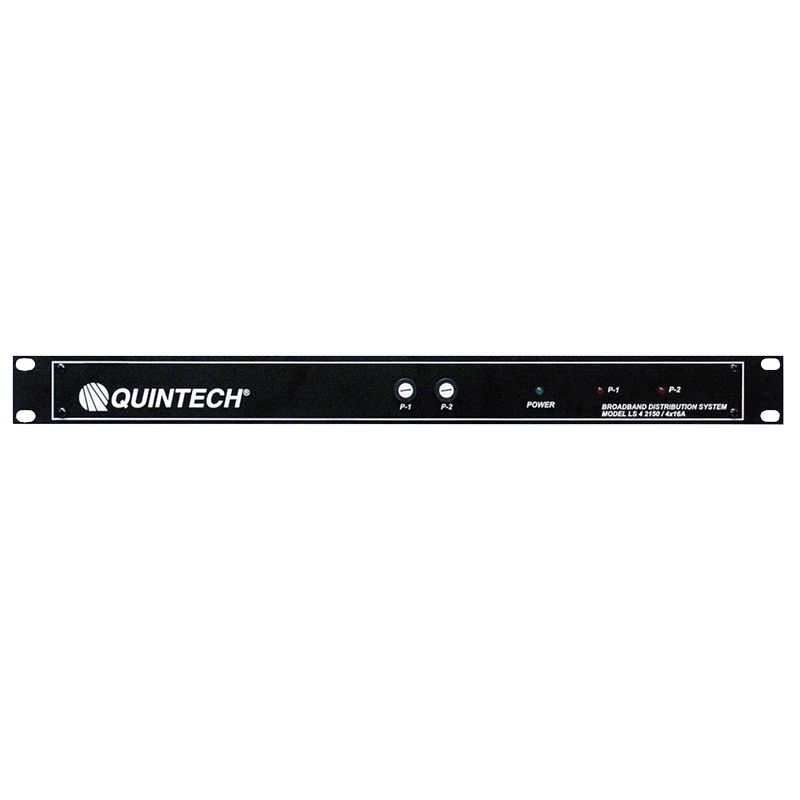

The Quintech LS042150A4FWA000 (LS4 2150/4x16A) is a commercial-quality quad 4-way active L-band splitter operating from 950 to 2150 MHz. It provides four independent 1×4 splitter channels, allowing four RF inputs to be distributed across a total of 16 RF outputs.

The active zero-loss design eliminates the need for external distribution amplifiers, while Quintech proprietary microstrip and surface-mount technology provides repeatable RF performance. Dual 18-24 VDC power inputs support redundant power operation, and front-panel LEDs indicate overall power status or failure of either power source. The unit can also supply up to 1.7 A of LNB power.

Power is continuously present at all four RF inputs. All unused RF output ports require 75-ohm terminations. When terminating an input, a DC block must be installed before the termination.

Specifications:

Product Type: Quad 4-Way Active L-Band Splitter
Configuration: Four Independent 1×4 Splitters
Manufacturer: Quintech Electronics
Product Series: LS4 2150/4x16A
Part Number: LS042150A4FWA000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
P1dB: +3 dBm
OIP3: +17.5 dBm
Insertion Loss: 0 ± 2 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 14 dB
Output Return Loss: 15 dB
Noise Figure: 9 dB
RF Connectors: Type F, 75 ohms
Power Requirements: 18-24 VDC at 2 A
Power Inputs: Dual redundant inputs via 2-pin barrier strips
LNB Power: 18-24 VDC, 1.7 A maximum
Power Consumption: 10 W plus connected LNB load
Mechanical: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 3.2 lb.
Gross Boxed Weight: 10 lb.
Certification: CE
