Quintech LC042150P1BNA011 950–2150 MHz 4-Way Passive L-Band Combiner

Quintech LC042150P1BNA011 4-Way Passive L-Band Combiner with 10 MHz Reference Pass

The Quintech LC042150P1BNA011 is a commercial-quality passive 4-way L-band combiner that combines four RF inputs into one output across the 950–2150 MHz frequency range. Its passive design requires no external operating power.

Built with Quintech proprietary microstrip and SMT technology, the LC042150P1BNA011 provides repeatable signal levels, impedance matching and insertion-loss performance across all RF ports. Input Port 1 passes a 10 MHz reference signal to the output with only 0.3 dB typ. insertion loss.

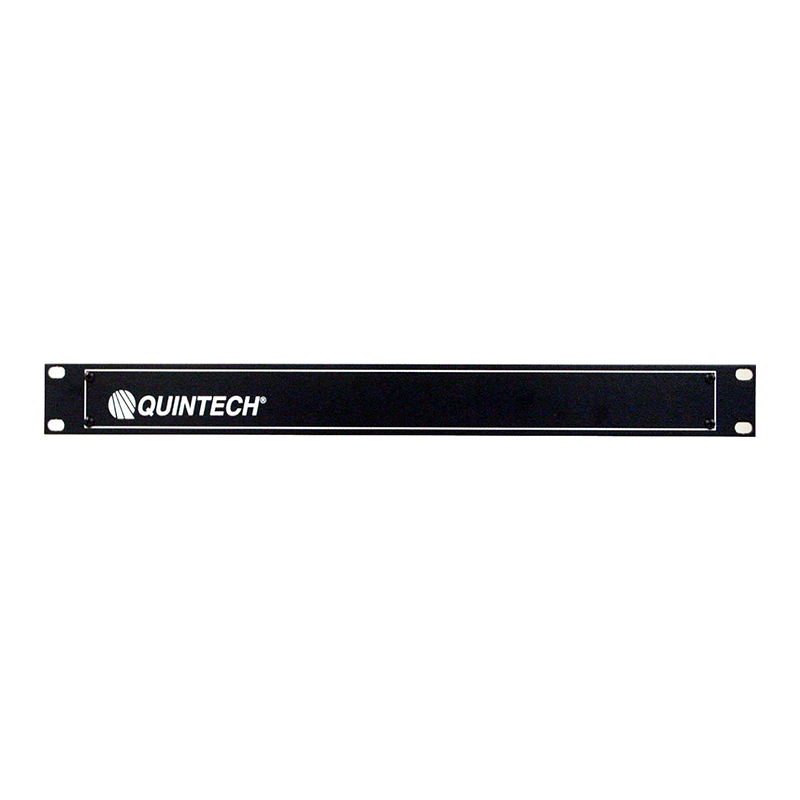

The 1RU rackmount unit features 75-ohm BNC connectors for satellite, broadcast, telecommunications and centralized RF distribution systems. All unused RF input ports must be fitted with 75-ohm terminations.

Specifications:

Product Type: 4-Way Passive L-Band Combiner
Manufacturer: Quintech Electronics
Product Series: LC4 2150P
Part Number: LC042150P1BNA011
Configuration: 4 × 1
RF Inputs: 4
RF Outputs: 1
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
Insertion Loss: 7.5 dB ±1 dB
Frequency Response: ±1 dB
10 MHz Reference Pass: Input Port 1 to Output
10 MHz Insertion Loss: 0.3 dB ±0.2 dB
Isolation: 18 dB
Input Return Loss: 14 dB
Output Return Loss: 10 dB
RF Connectors: 75-Ohm BNC
Operating Power Required: None
Input Termination Requirement: Unused Ports Require 75-Ohm Terminations
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.2 lb.
Gross Weight: 3.4 lb.
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
