Quintech LC4 2150P — 4-Way Passive Combiner (Port 1 Passes 10 MHz)

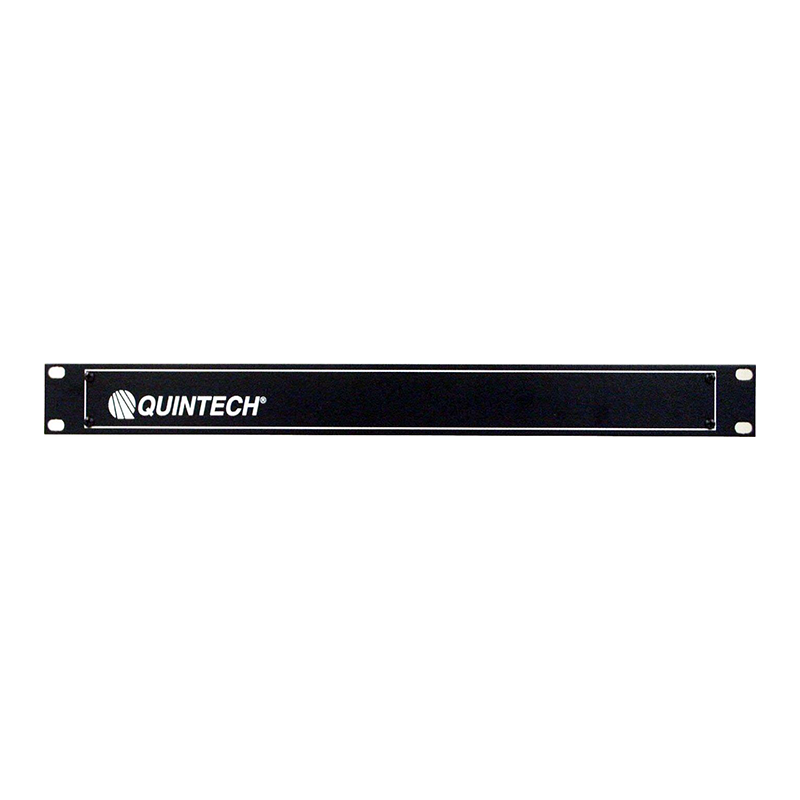

The Quintech LC4 2150P is a commercial-grade 4-way passive combiner operating from 950–2150 MHz, engineered using precision microstrip and SMT technology for highly repeatable RF performance. It supports combining multiple L-Band signals with controlled amplitude and matching, while Port 1 passes a 10 MHz reference with minimal loss. Ideal for SATCOM, broadcast, and reference-distribution systems requiring 75 Ω BNC connectivity.

Frequency Range: 950–2150 MHz

Impedance: 75 Ω
Insertion Loss: 7.5 dB typ. + 1 dB
Frequency Response: ±1 dB
10 MHz Insertion Loss (Port 1): 0.3 dB typ. + 0.2 dB
Isolation: 18 dB
Input Return Loss: 14 dB
Output Return Loss: 10 dB
RF Connectors: BNC (F), 75 Ω
Operating Temp: 0 to +50 °C
Storage Temp: –10 to +70 °C
Mechanical: 1 RU, 1.75" H × 19" W × 6.5" D
Weight: 2.2 lbs (net), 3.4 lbs (boxed)
Origin: USA

ECCN: EAR99
HTS: 8517620090 (recommended for RF combiners/splitters)
