ETL COM02L1P-2502-F7F7 2-way L-Band Passive Splitter/Combiner

ETL COM02L1P-2502-F7F7 2-Way L-Band Passive Splitter/Combiner

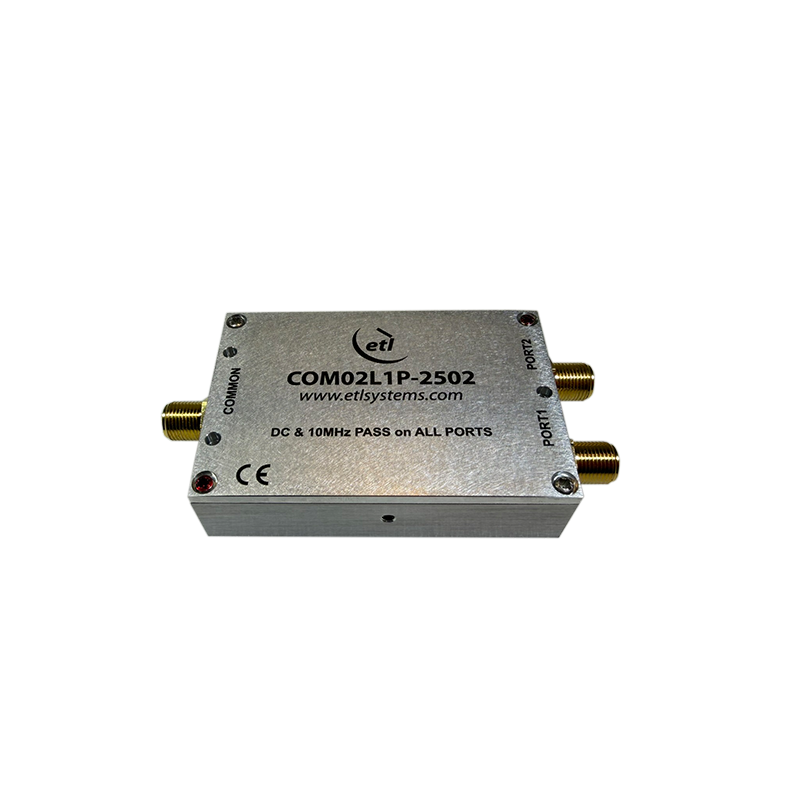

The ETL Systems COM02L1P-2502-F7F7 is a compact 2-way L-band passive splitter/combiner operating from 850 to 2150 MHz. Equipped with 75-ohm F-type connectors, it provides low insertion loss, high port-to-port isolation, and DC and 10 MHz pass on all RF ports. Its rugged indoor enclosure and flexible mounting options make it ideal for broadcast, satellite teleport, SNG, VSAT, and marine satellite systems.

Model: COM02L1P-2502-F7F7
Product Type: 2-Way Passive Splitter/Combiner
Frequency Range: 850-2150 MHz
RF Connectors: 75-ohm F-Type
Mean Insertion Loss: 0.4 ± 0.2 dB above theoretical loss
Flatness: ±0.25 dB
Input Return Loss: 20 dB typ., 16 dB min.
Output Return Loss: 26 dB typ., 18 dB min.
Isolation: 25 dB typ., 20 dB min.
Amplitude Balance: ≤0.5 dB
Phase Balance: ≤5°
DC and 10 MHz Pass: All RF ports
Operating Temperature: 0°C to +45°C
Installation: Indoor use only

Key Features:

• 2-way L-band passive splitter and combiner operation

• Wide 850-2150 MHz frequency range

• 75-ohm F-type RF connectors

• DC and 10 MHz pass on all RF ports

• Low insertion loss and excellent signal balance

• High isolation between output ports

• Compact, rugged enclosure

• Tapped-screw and through-hole mounting options
