ETL Systems Hawk HWK-G1S-15-C44 4×4 Extended L-Band Combining Matrix Module

ETL Systems Hawk HWK-G1S-15-C44 4×4 Extended L-Band Combining Matrix Module

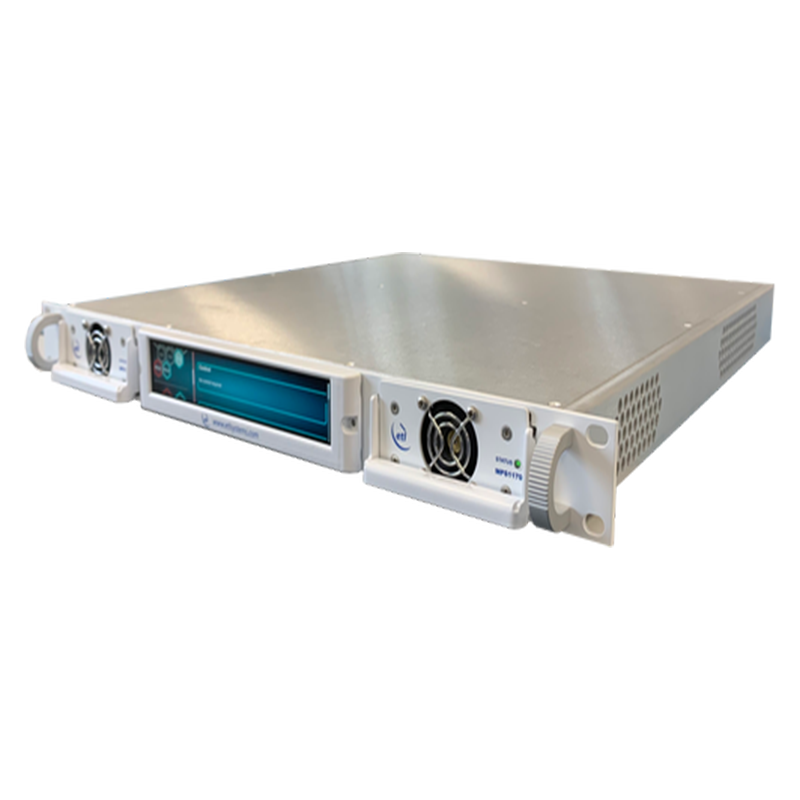

The ETL Systems Hawk HWK-G1S-15-C44 is a field-replaceable 4×4 combining matrix module for routing satellite uplink signals. It operates from 500 to 3150 MHz and fits in a GENUS 1U parent chassis alongside other compatible matrix or RF modules.

Frequency Range: 500–3150 MHz
Matrix Capacity: 4 inputs × 4 outputs; combining
Gain: 0 ±1 dB typ., mean across band
RF Connectors: 50 Ω SMA
Switching Time: Less than 50 ms
Noise Figure: 22 dB typ. at 850–2450 MHz; 25 dB typ. at 500–3150 MHz
Control & Monitoring: Via parent chassis touchscreen and Ethernet with HTTPS and SNMPv3
Power Supplies: Dual redundant supplies in the parent chassis
Form Factor: Field-replaceable module occupying four GENUS 1U slots

Key Features

• 4×4 combining matrix for satellite uplink routing

• Extended frequency coverage for Ka-band and HTS applications

• Field-replaceable design for easier maintenance

• Can share a GENUS chassis with compatible matrix, frequency converter, or RF over fiber modules
