ETL Systems Hawk HWK-G1S-15-F44 4×4 Extended L-Band Fan-In/Fan-Out Matrix Module

ETL Systems Hawk HWK-G1S-15-F44 4×4 Extended L-Band Fan-In/Fan-Out Matrix Module

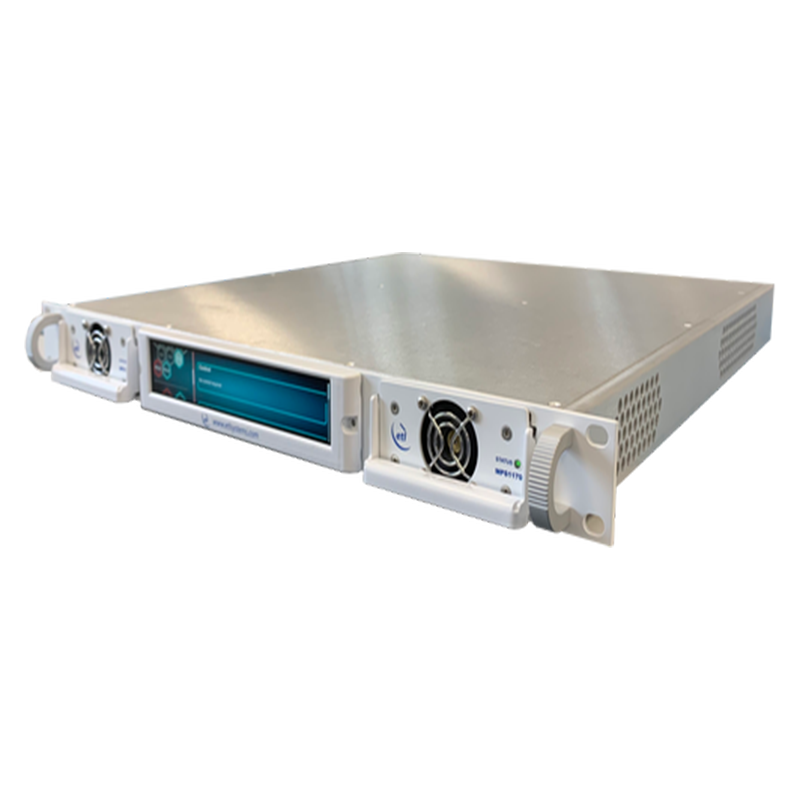

The ETL Systems Hawk HWK-G1S-15-F44 is a field-replaceable 4×4 fan-in/fan-out matrix module for satellite uplink and downlink routing. It operates from 500 to 2850 MHz and fits in a GENUS 1U parent chassis with other compatible RF modules.

Frequency Range: 500–2850 MHz
Matrix Capacity: 4 inputs × 4 outputs; fan-in/fan-out routing
Gain: 0 ±1 dB typ., mean across band
RF Connector Options: 50 Ω SMA or BNC; 75 Ω BNC or F-type
Switching Time: Less than 50 ms
Noise Figure: 15 dB maximum, with one input routed to one output
Control & Monitoring: Via parent chassis Ethernet with HTTPS and SNMPv3
Power Supplies: Dual redundant supplies in the parent chassis
Form Factor: Field-replaceable module; SMA version occupies four GENUS 1U slots

Key Features

• Supports both fan-in and fan-out routing in one 4×4 module

• Suitable for uplink and downlink signal paths

• Multiple RF connector and impedance options

• Can share a GENUS chassis with compatible matrix, frequency converter, or RF over fiber modules
