AVCOM SBS2-2150E Embedded Single Board L-Band Spectrum Analyzer

AVCOM SBS2-2150E Embedded Single Board L-Band Spectrum Analyzer

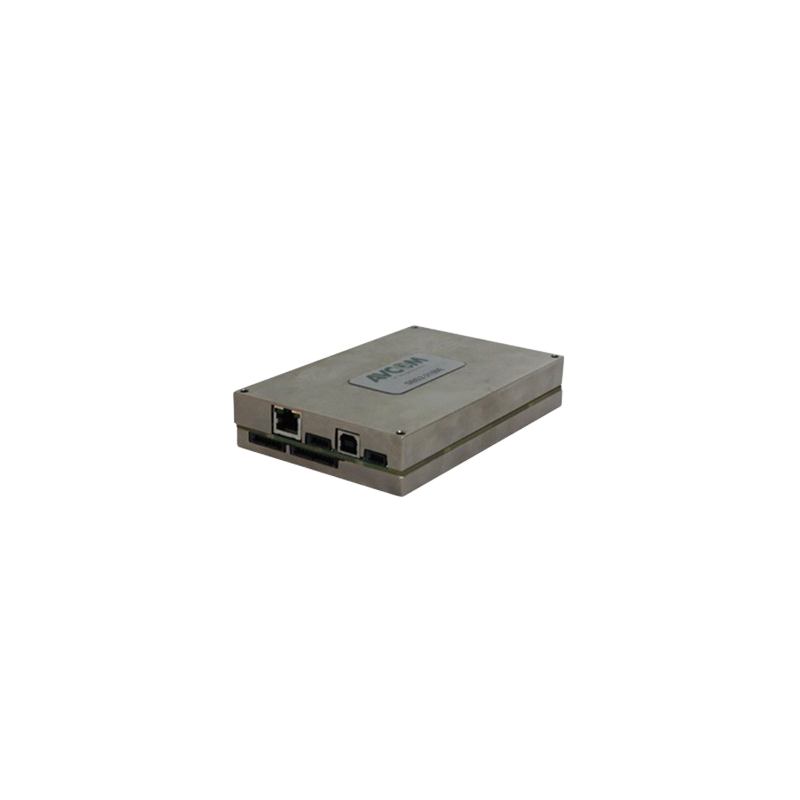

The AVCOM SBS2-2150E Embedded Single Board L-Band Spectrum Analyzer is a compact RF spectrum analyzer designed for OEM integration, Satcom-On-The-Move (SOTM), VSAT, satellite uplink/downlink, teleports, and RF signal monitoring applications. Its small SWaP (Size, Weight, and Power) design allows seamless integration into satellite terminals, antenna systems, and other embedded communications equipment.

Covering 950 to 2150 MHz L-Band with integrated 10 MHz reference signal monitoring, the SBS2-2150E supports Ethernet connectivity, AVCOM EVO GUI software, POSIX-compliant API, configurable data points, and an optional 3 kHz resolution bandwidth for detailed signal analysis. Its rugged construction, extended operating temperature range, and low power consumption make it ideal for demanding commercial and military SATCOM applications.

Key Features:

• 950–2150 MHz L-Band Frequency Coverage

• Compact SWaP (Size, Weight, and Power) Design

• Embedded Single Board Architecture

• Designed for OEM and SOTM Applications

• 10 MHz Reference Signal Monitoring

• Ethernet Connectivity with AVCOM EVO GUI

• POSIX-Compliant API for System Integration

• Optional 3 kHz Resolution Bandwidth

• Extended Operating Temperature (-30°C to +70°C)
