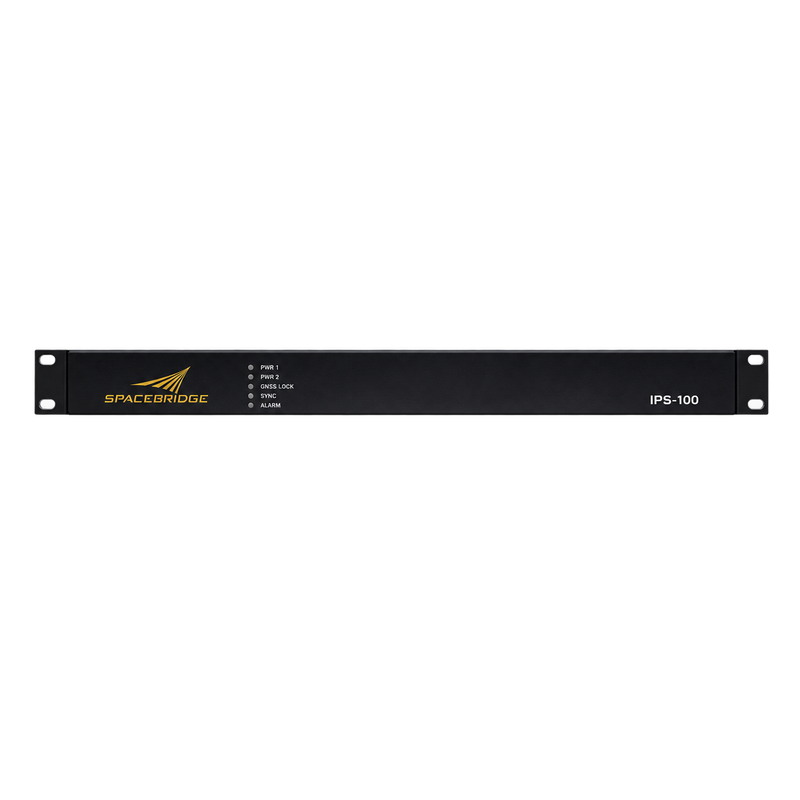

SpaceBridge IPS-100 Disciplined Time Reference & NTP Server

SpaceBridge IPS-100 Disciplined Time Reference & NTP Server
The SpaceBridge IPS-100 combines precision time and frequency synchronization with an integrated NTP server, Layer 2 switch and Layer 3 router. Three isolated 10 MHz outputs and three isolated 1PPS outputs distribute stable timing references for satellite ground systems, broadcast networks, cellular infrastructure and data centers. Optimized for DVB-RCS/DVB-RCS2 applications, the IPS-100 supports platform-wide NCR/PCR clock distribution to synchronize VSAT terminals to a common system reference.

Key Specifications

• Frequency Reference: 10 MHz, Stratum 2

• 10 MHz Connections: One input and three outputs

• 10 MHz Output Level: +7 dBm ±2 dBm, sinewave

• 1PPS Connections: One input and three individually controlled outputs

• 1PPS Accuracy: ±15 ns

• 1PPS Jitter: ±2.5 ns

• Reference Connectors: BNC female, 50 Ω

• Holdover Stability: ±1 × 10⁻¹⁰ per day

• Network Interfaces: Seven 10/100/1000Base-T RJ45 ports

• NTP Server: RFC 1305 compliant

• Power Input: 90–264 VAC, 50–60 Hz

• Power Consumption: 25W

• Form Factor: 1RU, 19-inch rackmount

• Operating Temperature: 0°C to +50°C

Key Features

• Three isolated, low phase-noise 10 MHz outputs

• Three isolated 1PPS outputs for precision timing distribution

• Integrated four-port Layer 2 switch and three-port Layer 3 router

• Platform-wide NCR/PCR synchronization for DVB-RCS2 networks

• Remote management through GUI and SNMP

• RS-232 console, dedicated Ethernet management port and front-panel status indicators

Download the datasheet under Attachments for detailed specifications.
