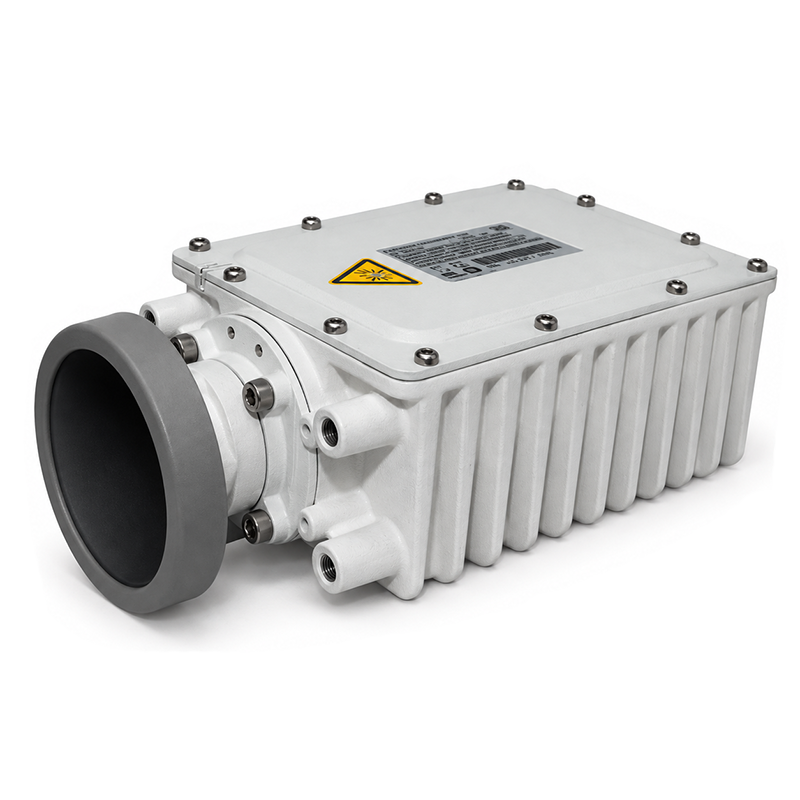

SpaceBridge XRF33F / XRF34F 3W & 4W Ka-Band Outdoor VSAT Transceiver

SpaceBridge XRF33F / XRF34F 3W & 4W Ka-Band Outdoor VSAT Transceiver

The SpaceBridge XRF33F and XRF34F are integrated Ka-band outdoor VSAT transceivers offering 3 W and 4 W transmit power options for professional and consumer satellite broadband applications. Combining a transmit block upconverter (BUC), receive low-noise block downconverter (LNB), orthomode transducer (OMT) and field-configurable circular polarizer, the XRF provides a compact antenna feed solution. Its S-band transmit IF interface, 50 MHz reference compatibility and IP67 enclosure support outdoor broadband deployments.

Model Options

• XRF33F: 3 W typ.

• XRF34F: 4 W typ.

Technical Specifications

Transmit — BUC

• RF Output Frequency Range: 29.0–30.0 GHz

• IF Input Frequency Range: 1400–2400 MHz

• LO Frequency: 27.6 GHz

• External Reference Frequency: 50 MHz; optional 10 MHz at ordering

• IF Input Drive Power: −17 dBm typ.

• IF Input Connector: F-type, 75 Ω

• DC Input Voltage: 18–50 VDC via TX IF port

• TX Power Consumption: 25 W typ. (XRF33F); 40 W typ. (XRF34F)

Receive — LNB

• RF Input Frequency Range: 17.8–20.2 GHz

• IF Output Frequency Range: 950–2150 MHz

• LO Frequency Options: 16.85 or 18.05 GHz

• DRO LO Stability: ±4000 kHz max.

• Optional PLL LO Stability: ±25 ppm max.

• Noise Figure at 25 °C: 1.2 dB typ.; 1.5 dB max.

• Conversion Gain: 56 dB typ.; 52–62 dB range

• Image Rejection: 25 dB min.

• IF Output IP3: +10 dBm min.

• IF Output Connector: F-type, 75 Ω

• DC Input Voltage: 18–22 VDC

• RX Power Consumption: 4 W typ.

Mechanical and Environmental

• Polarization: Field-configurable RHCP / LHCP, with orthogonal RX/TX polarization

• TX Cross-Polarization Discrimination: 25 dB min.

• RX Cross-Polarization Discrimination: 20 dB min.

• Antenna Compatibility: Matched to SpaceBridge 98 cm and 1.2 m antennas

• Operating Temperature: −40 °C to +55 °C

• Environmental Protection: IP67

• Overall Dimensions: 208 × 100 × 49 mm

• Weight: 1.1 kg, including feed

Key Features

• Integrated Ka-band BUC, LNB, OMT and circular polarizer

• 3 W and 4 W transmit power options

• Field-configurable circular polarization

• S-band transmit IF interface

• Standard 50 MHz or optional 10 MHz external reference

• DRO or optional PLL LNB configurations

• Integrated transmit and receive filtering

• Compact IP67 enclosure for outdoor installations
