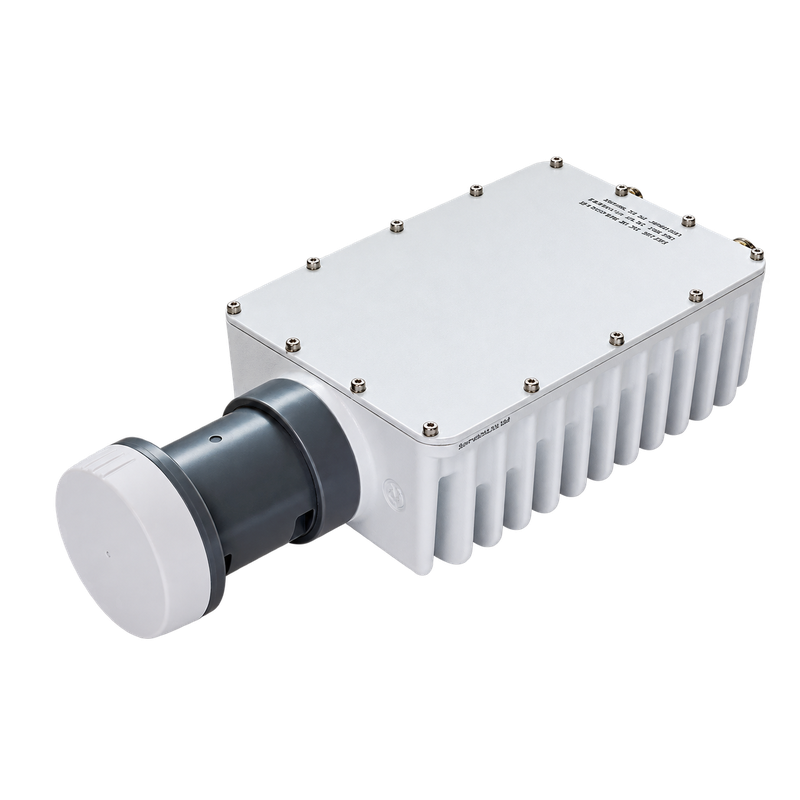

The SpaceBridge SBTR003UL is a compact lower Ku-band outdoor VSAT transceiver combining transmit and receive functions with an integrated feed horn and OMT. It transmits at 12.75–13.25 GHz and receives at 10.70–11.70 GHz, providing a complete RF outdoor unit for commercial satellite communications. Linear orthogonal polarization, an external 10 MHz transmit reference and IP67 protection support reliable outdoor operation.

Frequency Specifications

Technical Specifications

Transmit

• Rated Output Power: 3 W

• Output Power at P1dB: 34.5 dBm typ.

• RF Output Frequency Range: 12.75–13.25 GHz

• IF Input Frequency Range: 950–1450 MHz

• LO Frequency: 11.8 GHz

• External Reference Frequency: 10 MHz sinusoidal

• External Reference Input Level: −5 to +5 dBm

• Conversion Gain: 58 dB typ.

• Gain Variation over 60 MHz: 1.5 dB

• Gain Variation over Full Band: 4 dB peak-to-peak

• Automatic TX Mute: LO unlocked or external 10 MHz reference absent

Receive

• RF Input Frequency Range: 10.70–11.70 GHz

• IF Output Frequency Range: 950–1950 MHz

• LO Frequency: 9.75 GHz

• LO Stability: ±500 kHz

• Noise Figure: <1.3 dB

• Conversion Gain: 57 dB typ.

• Gain Variation over 36 MHz: 0.75 dB

• Gain Variation over Full Band: 4 dB

Mechanical and Electrical

• Polarization: Linear orthogonal TX/RX

• Cross-Polarization Isolation: >30 dB

• TX/RX Isolation in Receive Band: >80 dB

• TX/RX Isolation in Transmit Band: >30 dB

• Feed Design f/D: 0.65

• TX and RX IF Connectors: F-type female

• DC Supply Voltage: 15–24 VDC

• Power Consumption at 34 dBm Output: 18 W typ.; 25 W max.

• Power Consumption with 10 MHz Reference Off: 4 W max.

• Dimensions: 217 × 96.8 × 53.5 mm

• Weight: 1.095 kg

• Antenna Mounting Interface: 40 mm diameter × 35 mm length

Environmental

• Operating Temperature: −40 °C to +55 °C

• Survival Temperature: −40 °C to +85 °C

• Humidity: 0–100%

• Altitude: 4500 m

• Environmental Protection: IP67

Key Features

• All-in-one lower Ku-band transceiver with integrated feed horn

• 3 W rated transmit output

• 12.75–13.25 GHz transmit frequency coverage

• 10.70–11.70 GHz receive frequency coverage

• External 10 MHz transmit reference

• Automatic transmit mute for reference loss or LO unlock

• Compact, lightweight IP67 enclosure

• RoHS compliant
