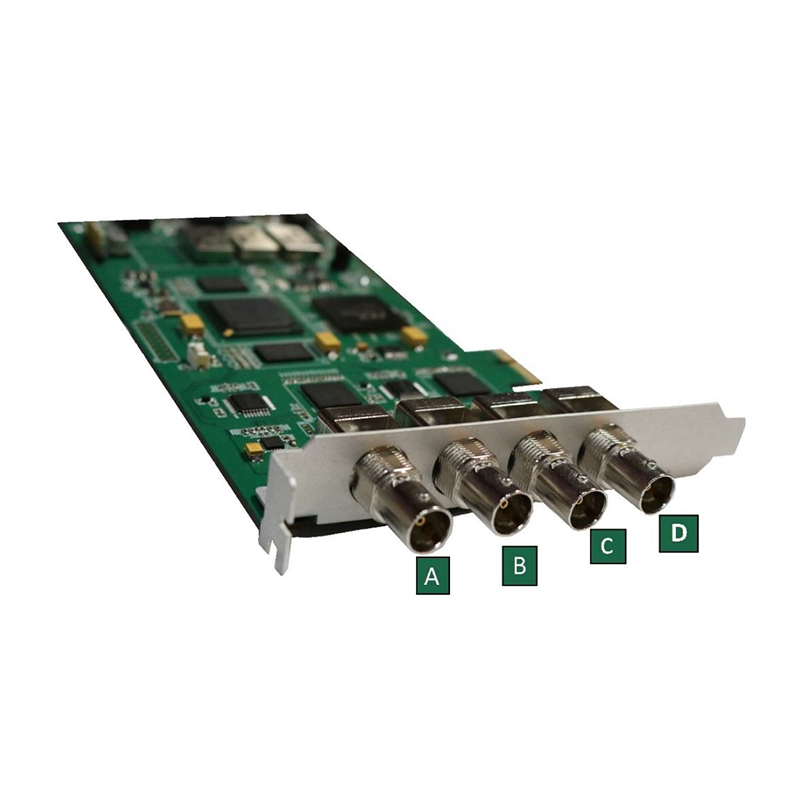

DTV Innovations BX-01 ASI/310M Multiplexer and Failover PCIe Card

DTV Innovations BX-01 ASI/310M Multiplexer and Failover PCIe Card

The DTV Innovations BX-01 is a multifunction PCI Express x1 card that provides real-time processing of ASI and SMPTE-310M transport streams. Configurable as a multiplexer, seamless failover switch, data inserter or format converter, it combines several broadcast transport-stream functions in a compact, host-based solution.

The BX-01 provides two ASI or SMPTE-310M inputs and two outputs configurable for ASI or SMPTE-310M formats. In multiplexer mode, it combines two MPEG-2 transport streams into a single multiplexed output available in both formats. In failover mode, it monitors the primary and backup inputs and switches between them when a failure is detected.

Data-insertion capabilities support PSIP, subtitles, teletext, advertising and other auxiliary information. Automatic input-format and packet-size detection simplifies operation, while relay bypass on the primary input maintains signal continuity. A complete API provides detailed control and monitoring, and firmware can be upgraded through the local host computer.

Key Features

• Multifunction ASI and SMPTE-310M PCIe processing card

• Multiplexer, failover switch and data-insertion functions

• ASI-to-SMPTE-310M and SMPTE-310M-to-ASI conversion

• Two real-time ASI or SMPTE-310M inputs

• Primary and backup input configuration

• Two configurable ASI or SMPTE-310M outputs

• Automatic input-format detection

• Automatic transport-stream packet-size detection

• Creates a multiplexed output from two MPEG-2 transport streams

• Multiplexed output available in ASI and SMPTE-310M formats

• Seamless automatic failover switching

• Monitors both primary and backup transport streams

• Relay bypass on the primary input

• Supports PSIP data insertion

• Supports subtitle and teletext insertion

• Supports advertising and auxiliary-data insertion

• Compliant with ATSC and DVB standards

• ASI data rates up to 216 Mbps

• ASI clock rate of 270 MHz

• ASI data-rate accuracy of 3 ppm

• SMPTE-310M data rate of 19.392658 Mbps

• SMPTE-310M bi-phase mark coding

• Maximum SMPTE-310M jitter of 1 ppm

• Four 75-ohm BNC connectors

• PCI Express x1 Version 1.1 compliant

• Plug-and-play installation

• Complete API for control and monitoring

• Firmware upgrade through the local host computer

• Powered by 3.3 VDC through the PCIe connector

• Low-power operation

• Compact dimensions of 6.67 × 3.89 × 0.72 inches

• Weight: 0.4 lb

• Operating temperature range from 32°F to 104°F

• Field-upgradable architecture

• Made in the USA
