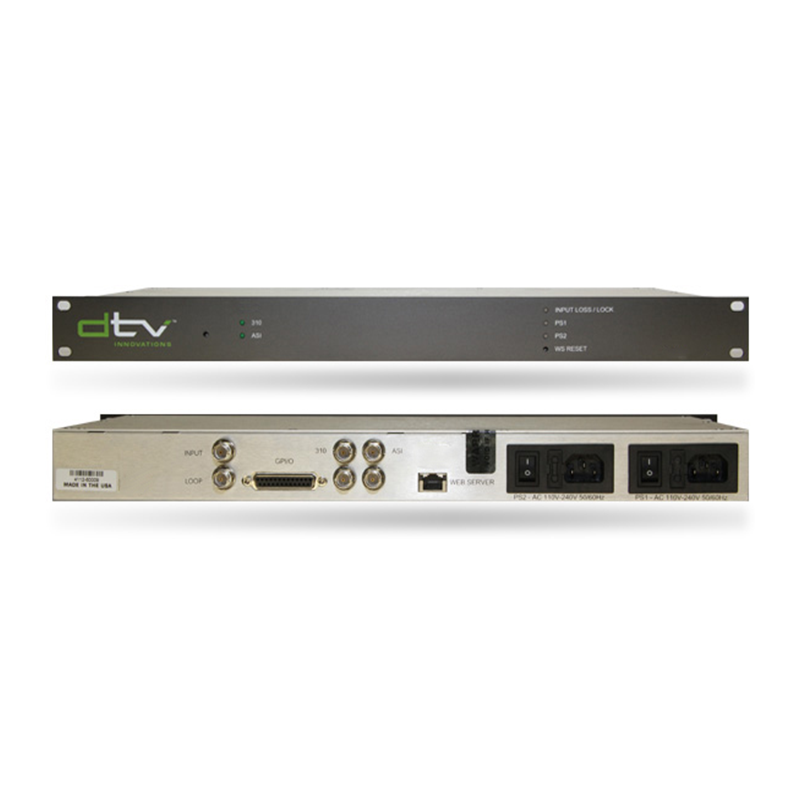

DTV Innovations TSC-5000 Transport Stream Converter

DTV Innovations TSC-5000 Transport Stream Converter

The DTV Innovations TSC-5000 is a professional transport-stream format converter designed for terrestrial, cable and satellite broadcast systems. It converts between ASI and SMPTE-310M formats while supporting ATSC and DVB standards, ATSC Mobile DTV applications, and both 188-byte and 204-byte transport-stream packets.

The TSC-5000 accepts either ASI or SMPTE-310M input and provides both output formats simultaneously. Equalized and amplified loop outputs support signal distribution, while relay bypass maintains the incoming signal path during a power failure. Configurable null-packet processing provides additional transport-stream flexibility.

An integrated web-server interface allows operators to configure I/O settings, monitor unit status, and save or load user-defined configurations. Rear-panel GPIO, front-panel status indicators, dual power supplies and field-upgradable architecture provide reliable operation in professional broadcast facilities.

Key Features

• Professional ASI and SMPTE-310M transport-stream converter

• Bidirectional ASI-to-SMPTE-310M format conversion

• Accepts ASI or SMPTE-310M transport-stream input

• ASI and SMPTE-310M outputs active simultaneously

• Compliant with ATSC and DVB standards

• ATSC Mobile DTV ready

• Supports 188-byte and 204-byte transport-stream packets

• Equalized and amplified ASI loop output

• Equalized and amplified SMPTE-310M loop output

• User-selectable null-packet insertion and removal

• Relay bypass maintains the signal path during power failure

• Integrated web-server configuration and monitoring

• Remote status monitoring through the web interface

• Manual front-panel reset control

• Front-panel status and error indicators

• Rear-panel GPIO connector

• Save and load user-defined configurations

• User login management controls

• ASI data rates up to 50 Mbps

• SMPTE-310M data rate of 19.392658 Mbps

• Single 100/1000BASE-TX Ethernet management port

• Dual power supplies for increased reliability

• Field-upgradable architecture

• Compact 1 RU rack-mount chassis

• Maximum power consumption of 25 W

• Made in the USA
