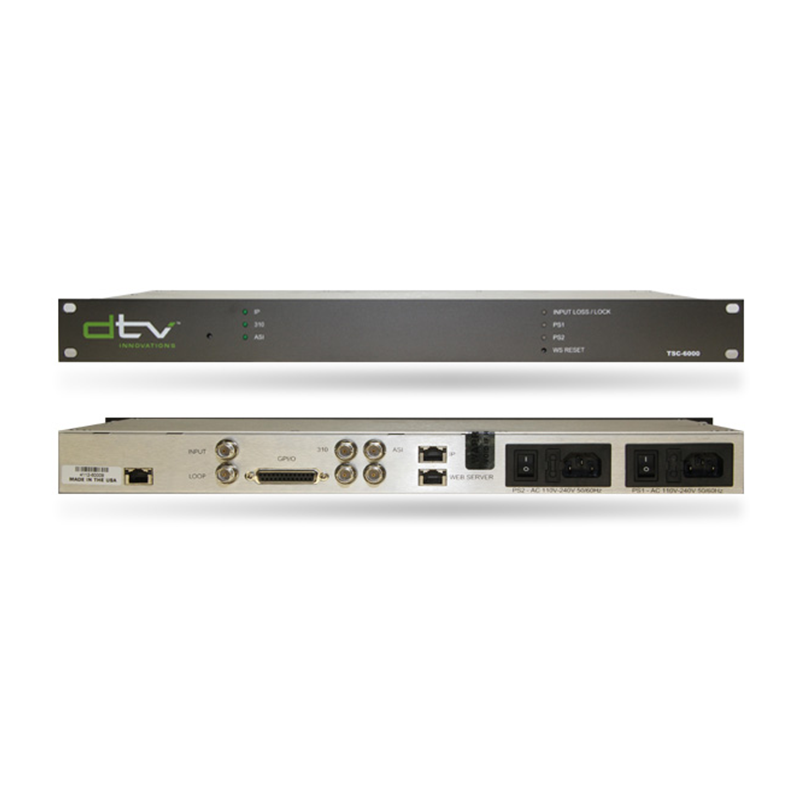

DTV Innovations TSC-6000 Transport Stream Converter

DTV Innovations TSC-6000 Transport Stream Converter

The DTV Innovations TSC-6000 is a professional transport-stream format converter for ASI, SMPTE-310M and Transport Stream over IP applications. Designed for terrestrial, cable and satellite broadcast systems, it supports ATSC and DVB standards, ATSC Mobile DTV applications, and 188-byte or 204-byte transport-stream packets.

The TSC-6000 accepts ASI, SMPTE-310M or TSoIP input and provides all three output formats simultaneously. SMPTE 2022 processing supports UDP or RTP transport-stream encapsulation, de-encapsulation and forward error correction. Equalized and amplified ASI and SMPTE-310M loop outputs provide additional signal-distribution flexibility.

An integrated web-server interface allows operators to configure I/O settings, process null packets, monitor system status, and save or load user-defined configurations. Relay bypass, rear-panel GPIO, front-panel indicators, dual power supplies and field-upgradable architecture provide reliable operation in professional broadcast facilities.

Key Features

• Professional ASI, SMPTE-310M and TSoIP converter

• Converts between all three transport-stream formats

• Accepts ASI, SMPTE-310M or TSoIP input

• ASI, SMPTE-310M and TSoIP outputs active simultaneously

• SMPTE 2022 transport stream over IP support

• UDP and RTP transport-stream encapsulation

• UDP/RTP de-encapsulation

• Forward error correction support

• Supports 188-byte and 204-byte transport-stream packets

• Configurable 1 to 7 transport-stream packets per IP packet

• Configurable FEC matrix parameters

• Compliant with ATSC and DVB standards

• ATSC Mobile DTV ready

• Equalized and amplified ASI loop output

• Equalized and amplified SMPTE-310M loop output

• User-selectable null-packet insertion and removal

• Relay bypass maintains the signal path during power failure

• Integrated web-server configuration and monitoring

• Remote status monitoring through the web interface

• Manual front-panel reset control

• Front-panel status and error indicators

• Rear-panel GPIO connector

• Save and load user-defined configurations

• User login management controls

• ASI data rates up to 50 Mbps

• SMPTE-310M data rate of 19.392658 Mbps

• Single 100/1000BASE-TX Ethernet management port

• Dual power supplies for increased reliability

• Field-upgradable architecture

• Compact 1 RU rack-mount chassis

• Maximum power consumption of 25 W

• Made in the USA
