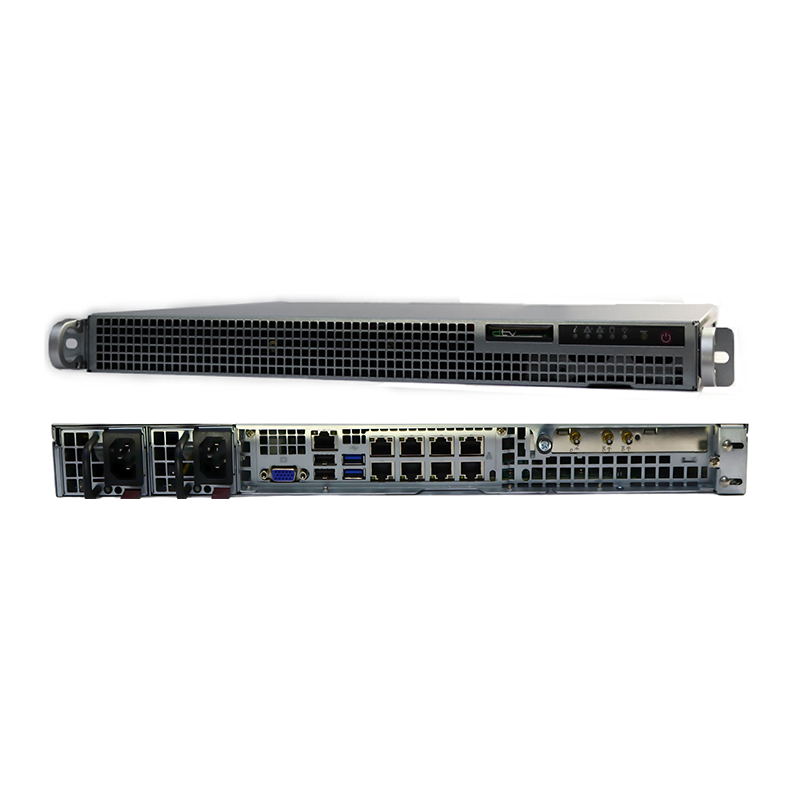

DTV Innovations OX-R Secure Reliable IP Streaming Appliance

DTV Innovations OX-R Secure Reliable IP Streaming Appliance

The DTV Innovations OX-R is a professional secure and reliable IP streaming appliance supporting SRT, Zixi, RIST and SMPTE 2022. It is designed for low-latency media delivery over busy LANs, public Internet connections, microwave links and other unpredictable IP networks.

Configured as a sender, the OX-R accepts MPEG transport stream over IP or other UDP/IP packets, encrypts the content, and encapsulates it using the selected reliable streaming protocol. As a receiver, it reverses the process to recover the original stream. The standard configuration includes two input streams with full bidirectional operation, while licensing allows expansion to as many as 50 inputs and four output streams per input.

An optional ASI interface enables ASI-to-TSoIP and TSoIP-to-ASI conversion, with 2-, 4- or 12-port ASI card options available. Eight configurable Ethernet ports, AES encryption, ATSC 3.0 STLTP transport, SNMP monitoring, integrated web-based control and hot-swappable redundant power supplies make the OX-R suitable for critical broadcast contribution and distribution.

Key Features

• Secure, reliable, low-latency IP streaming appliance

• Supports SRT, Zixi, RIST and SMPTE 2022

• ATSC 3.0 STLTP transport over RIST or SRT

• Configurable as a source/sender or destination/receiver

• Full bidirectional streaming support

• Two input streams included in the standard configuration

• Expandable to as many as 50 licensed inputs

• Up to four output streams per input

• Eight configurable Gigabit Ethernet ports

• Supports unicast and multicast streaming

• UDP and RTP transport support

• SMPTE 2022-1 and SMPTE 2022-2 support

• SMPTE 2022 forward error correction

• AES 128-bit and 256-bit encryption with RIST

• AES 128-bit, 192-bit and 256-bit encryption with SRT

• IP streaming rates up to approximately 400-500 Mbps

• Accepts MPEG transport stream over IP

• Supports other UDP-over-IP packet types

• Optional ASI input and output interfaces

• ASI-to-TSoIP and TSoIP-to-ASI conversion

• Optional 2-, 4- or 12-port ASI interface cards

• ASI burst rates up to 213 Mbps

• Integrated web-server configuration and monitoring

• Account- and password-protected management

• SNMP remote monitoring

• Separate Gigabit Ethernet control interface

• Front-panel power, mode, status and input indicators

• VGA and USB secondary control interfaces

• Compact 1 RU rack-mount server

• Hot-swappable dual redundant power supplies

• Forced-air front-to-rear cooling

• One-year standard warranty

• Optional extended warranty
