DTV Innovations CX-1 ASI/TSoIP Transport Stream Converter

DTV Innovations CX-1 ASI/TSoIP Transport Stream Converter

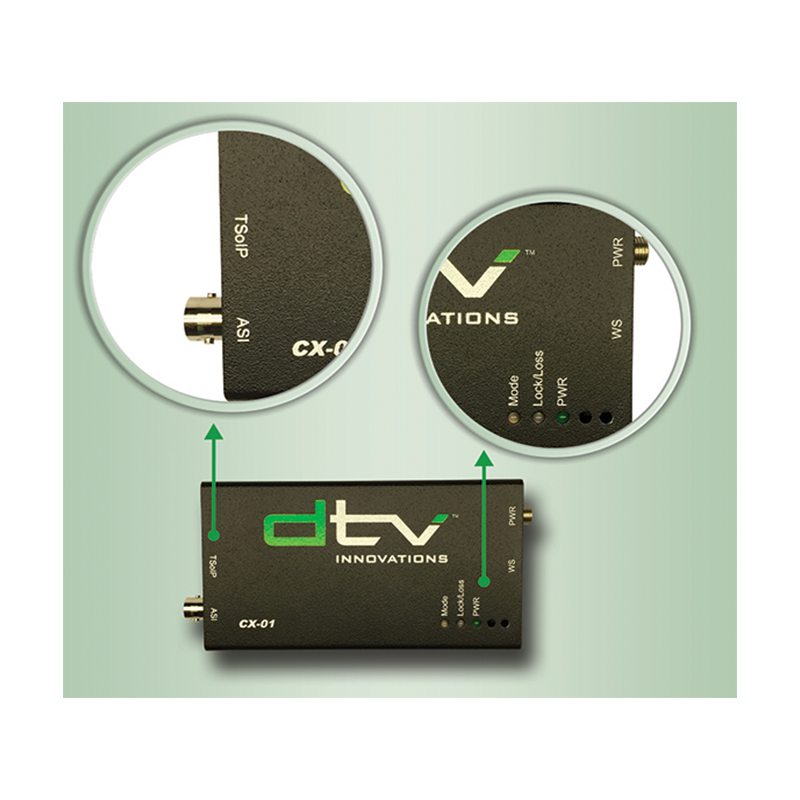

The DTV Innovations CX-1 is an ultra-compact, bidirectional transport stream converter that converts DVB-ASI to Transport Stream over IP (TSoIP) or TSoIP back to ASI. It is ideal for routing broadcast video through production facilities or transporting content to remote transmitter sites over wired or wireless IP networks.

Compliant with DVB-ASI and SMPTE 2022 standards, the CX-1 supports UDP and RTP encapsulation, de-encapsulation, and forward error correction. It accommodates transmit and receive bitrates from 0.1 to 216 Mbps through a Gigabit Ethernet interface and provides a 75-ohm BNC connection for DVB-ASI equipment.

An integrated web-server interface simplifies configuration and monitoring. Operators can manage user accounts and save network and operating settings as reusable presets, including a power-on default. Its field-upgradable design, included power supply, and compact enclosure make the CX-1 a cost-effective solution for terrestrial, cable, satellite, and remote broadcast applications.

Key Features

• Bidirectional ASI-to-TSoIP and TSoIP-to-ASI conversion

• Compliant with DVB-ASI and SMPTE 2022 standards

• UDP or RTP transport-stream encapsulation

• UDP/RTP de-encapsulation

• SMPTE 2022 forward error correction

• Transmit and receive bitrates from 0.1 to 216 Mbps

• IEEE 802.3ab Ethernet interface

• 10/100/1000 Mbps auto-sensing RJ45 port

• DVB-ASI interface with 75-ohm BNC connector

• ASI burst rates up to 213 Mbps

• Integrated web-server configuration and monitoring

• User-account and password management

• Save and recall user-defined configuration presets

• Configurable power-on default

• Suitable for wired and wireless IP links

• Ideal for studio-to-transmitter and remote broadcast links

• Ultra-compact enclosure measuring 4.75 × 2.625 × 1.25 inches

• Field-upgradable architecture

• External power supply included

• Made in the USA
