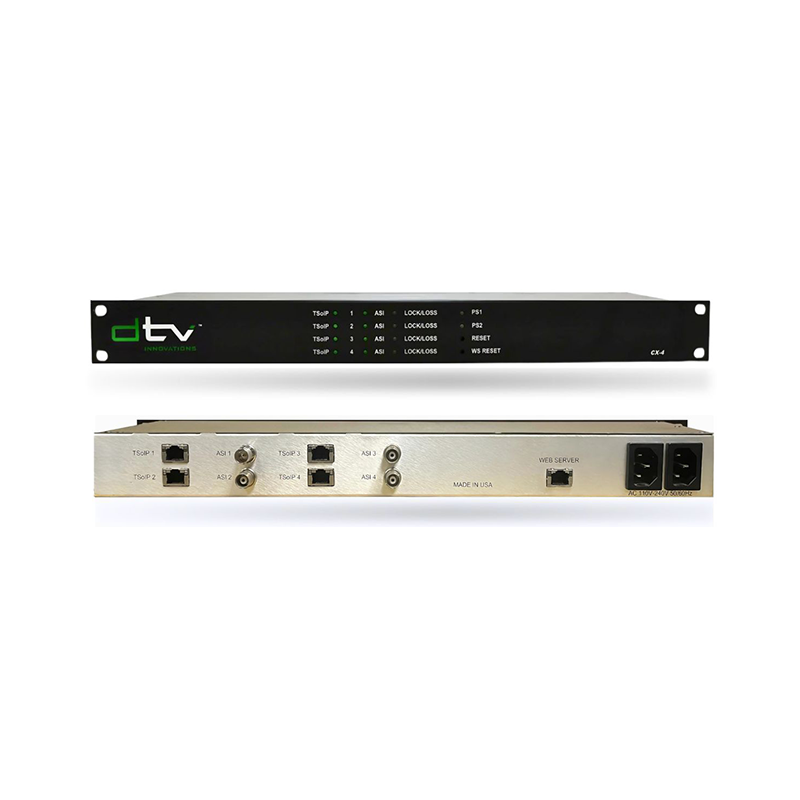

DTV Innovations CX-4 Quad ASI/TSoIP Transport Stream Converter

DTV Innovations CX-4 Quad ASI/TSoIP Transport Stream Converter

The DTV Innovations CX-4 is a professional quad transport stream converter and IP gateway that provides up to four independent ASI-to-TSoIP or TSoIP-to-ASI conversion channels in a compact 1 RU chassis. Each channel can be configured independently for flexible broadcast signal contribution, routing and distribution.

Compliant with DVB-ASI and SMPTE 2022 standards, the CX-4 supports UDP or RTP transport-stream encapsulation, de-encapsulation and forward error correction. It accommodates 188-byte and 204-byte transport-stream packets, configurable IP packetization and flexible FEC matrix settings for reliable delivery over IP networks.

An integrated web-server interface provides straightforward configuration and monitoring, while SNMP enables remote system supervision. Dual power supplies, front-panel status indicators and a rack-mount design make the CX-4 ideal for studio-to-transmitter links, broadcast facilities, terrestrial networks and IP-based content distribution.

Key Features

• Up to four independent transport-stream converters

• Configurable ASI-to-TSoIP or TSoIP-to-ASI operation

• Professional transport stream converter and IP gateway

• Compliant with DVB-ASI and SMPTE 2022 standards

• UDP or RTP transport-stream encapsulation

• UDP/RTP de-encapsulation

• SMPTE 2022 forward error correction

• Supports 188-byte and 204-byte transport-stream packets

• Configurable from one to seven TS packets per IP packet

• Configurable FEC matrix parameters

• Four DVB-ASI ports with 75-ohm BNC connectors

• ASI data rates up to 270 Mbps

• Single 100/1000BASE-TX Ethernet port

• Integrated web-server configuration and monitoring

• SNMP remote monitoring

• Front-panel LED status indicators

• Manual web-server reset control

• Dual power supplies for reliable operation

• 85–264 VAC, 47–63 Hz input range

• Maximum power consumption of 25 W

• Compact 1 RU, 19-inch rack-mount chassis

• Dimensions: 19 × 14 × 1.75 inches

• Weight: 3.5 lb

• Made in the USA
