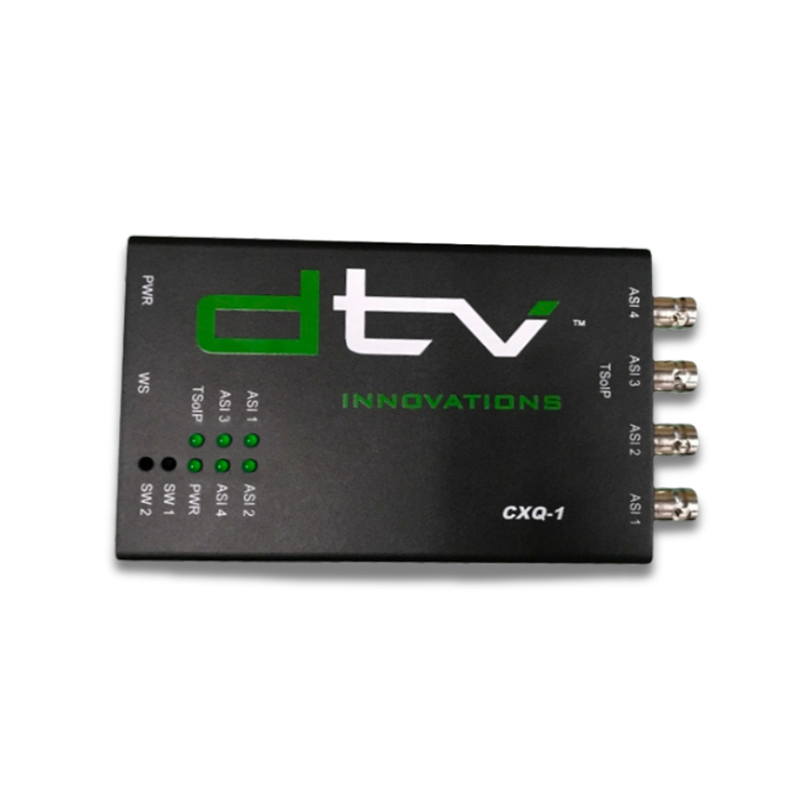

DTV Innovations CXQ-1 Quad ASI-to-TSoIP Transport Stream Converter

DTV Innovations CXQ-1 Quad ASI-to-TSoIP Transport Stream Converter

The DTV Innovations CXQ-1 is a compact, high-density transport stream converter that converts up to four DVB-ASI input streams into four Transport Stream over IP (TSoIP) outputs. All four IP streams are delivered through a single Gigabit Ethernet connector, simplifying broadcast signal routing and IP distribution.

Compliant with DVB-ASI and SMPTE 2022 standards, the CXQ-1 supports UDP or RTP transport-stream encapsulation and SMPTE 2022 forward error correction. It accommodates transmit bitrates from 0.1 to 216 Mbps and provides four 75-ohm BNC connectors for professional DVB-ASI equipment.

An integrated web-server interface provides convenient configuration and monitoring, while SNMP supports remote system supervision. User-account management, reusable configuration presets, a configurable power-on default and field-upgradable architecture make the CXQ-1 ideal for broadcast facilities, studio-to-transmitter links and remote video distribution.

Key Features

• Converts up to four DVB-ASI streams to TSoIP

• Four simultaneous TSoIP output streams

• All IP streams delivered through one Ethernet port

• Compliant with DVB-ASI and SMPTE 2022 standards

• UDP or RTP transport-stream encapsulation

• SMPTE 2022 forward error correction

• Transmit bitrates from 0.1 to 216 Mbps

• Four DVB-ASI ports with 75-ohm BNC connectors

• ASI burst rates up to 213 Mbps

• IEEE 802.3ab Ethernet interface

• 10/100/1000 Mbps auto-sensing RJ45 port

• Integrated web-server configuration and monitoring

• SNMP remote monitoring

• User-account and password management

• Save and recall user-defined configuration presets

• Configurable power-on default

• Persistent storage of configuration parameters

• Suitable for wired and wireless IP networks

• Ideal for studio-to-transmitter and remote broadcast links

• Compact, high-density design

• Field-upgradable architecture

• External power supply included

• Made in the USA
