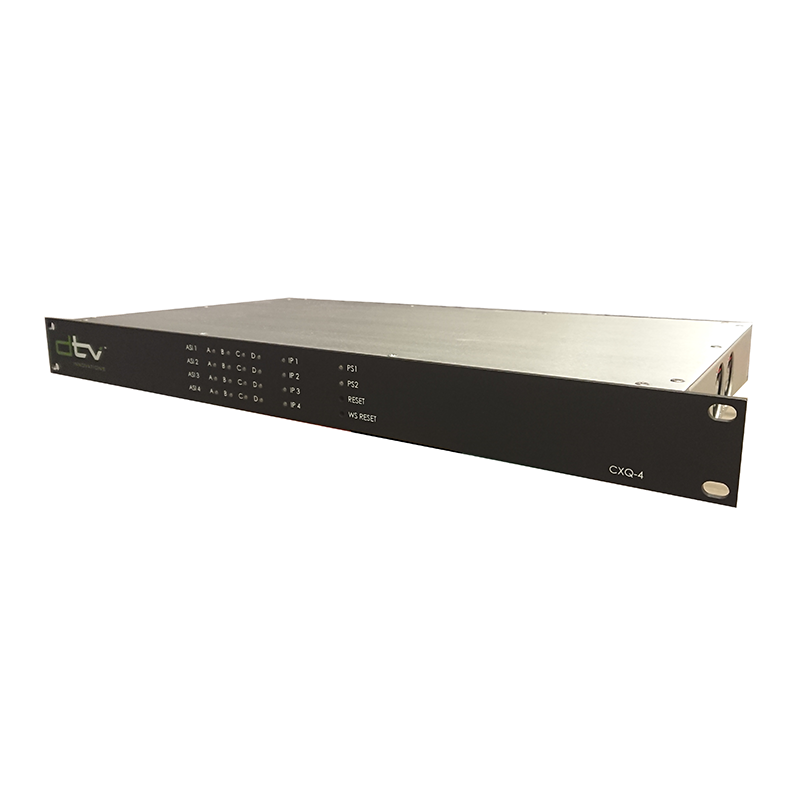

DTV Innovations CXQ-4 High-Density ASI-to-TSoIP Converter/Gateway

DTV Innovations CXQ-4 High-Density ASI-to-TSoIP Converter/Gateway

The DTV Innovations CXQ-4 is a scalable, high-density transport stream converter and IP gateway that converts 4, 8, 12 or 16 DVB-ASI input streams to Transport Stream over IP (TSoIP). Its modular architecture accommodates up to four quad-interface modules in a compact 1 RU chassis.

Each quad module converts four DVB-ASI streams and delivers the corresponding TSoIP streams through one dedicated Gigabit Ethernet port. A fully configured CXQ-4-16 provides 16 ASI inputs and four Ethernet outputs, with each Ethernet connection carrying up to four independent IP streams.

Compliant with DVB-ASI and SMPTE 2022 standards, the CXQ-4 supports UDP or RTP encapsulation, forward error correction, IPv6 and Source-Specific Multicast. Web-based configuration, SNMP monitoring, dual power supplies and field-upgradable architecture make it an excellent solution for broadcast facilities, studio-to-transmitter links and high-density IP video distribution.

Key Features

• Converts DVB-ASI transport streams to TSoIP

• Available with 4, 8, 12 or 16 ASI input channels

• Model configurations: CXQ-4-4, CXQ-4-8, CXQ-4-12 and CXQ-4-16

• Up to four independent quad-interface modules

• Four ASI inputs per interface module

• One dedicated Ethernet output per quad module

• Up to four TSoIP streams through each Ethernet port

• Up to four 100/1000BASE-TX Ethernet ports

• Compliant with DVB-ASI and SMPTE 2022 standards

• UDP or RTP transport-stream encapsulation

• SMPTE 2022 forward error correction

• Supports 188-byte and 204-byte transport-stream packets

• Configurable from one to seven TS packets per IP packet

• Configurable FEC matrix parameters

• IPv6 support

• Source-Specific Multicast support

• 75-ohm BNC DVB-ASI connectors

• ASI data rates up to 270 Mbps

• Integrated web-server configuration and monitoring

• SNMP remote monitoring

• Field-upgradable and factory-expandable architecture

• Dual power supplies for failsafe operation

• 85–264 VAC, 47–63 Hz input range

• Maximum power consumption of 35 W

• Compact 1 RU, 19-inch rack-mount chassis

• Dimensions: 19 × 14 × 1.75 inches

• Weight: 3.5 lb

• Made in the USA
