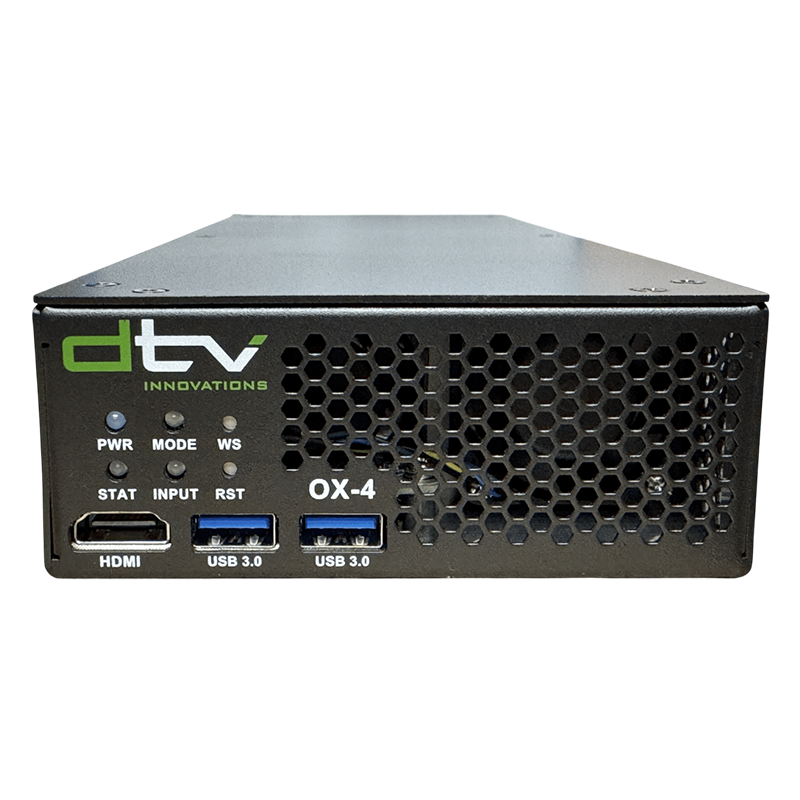

DTV Innovations OX-4 Secure Reliable IP Streaming Platform

DTV Innovations OX-4 Secure Reliable IP Streaming Platform

The DTV Innovations OX-4 is a compact, adaptable platform for secure and reliable IP streaming and advanced broadcast workflows. Its default configuration operates as a secure streaming appliance supporting SMPTE 2022, SRT, RIST and Zixi for dependable video delivery over public Internet connections, managed networks and other challenging IP links.

Four auto-sensing 2.5 Gigabit Ethernet ports support unicast and multicast transmission, UDP and RTP transport, and SMPTE 2022 forward error correction. The platform also supports ATSC 3.0 STLTP delivery over RIST or SRT, with AES encryption available according to the selected streaming protocol.

Through modular software and optional hardware interfaces, the OX-4 can be configured for ASI, SDI, baseband video, compressed video, terrestrial RF or satellite RF applications. Supported platform roles include encoding and decoding, transcoding, PSIP and EPG generation, ATSC 3.0 reception and translation, satellite receiver-decoding, failover switching, signal capture and laboratory signal generation. Web-based management, SNMP monitoring and a compact enclosure make the OX-4 a flexible foundation for evolving broadcast requirements.

Key Features

• Compact, modular secure IP streaming platform

• Supports SMPTE 2022, SRT, RIST and Zixi

• Secure/reliable streaming appliance configuration by default

• Four auto-sensing 2.5 Gigabit Ethernet ports

• Supports 100, 1000 and 2500 Mbps Ethernet connections

• Unicast and multicast IP streaming

• UDP and RTP transport support

• SMPTE 2022-1 and SMPTE 2022-2 support

• SMPTE 2022 forward error correction

• Configurable FEC matrix parameters

• ATSC 3.0 STLTP transport over RIST or SRT

• AES 128-bit and 256-bit encryption with RIST

• AES 128-bit, 192-bit and 256-bit encryption with SRT

• Optional ASI or SDI interfaces

• Optional terrestrial and satellite RF interfaces

• Supports baseband and compressed-domain video workflows

• Configurable for video encoding, decoding and transcoding

• PSIP and EPG generator/rebrander capability

• Terrestrial edge-transcoder capability

• ATSC 3.0 receiver and translator capability

• ATSC 3.0 capture and laboratory signal-generator capability

• Integrated satellite receiver-decoder capability

• MPEG transport stream or ATSC 3.0 failover applications

• Integrated web-server configuration and monitoring

• Account- and password-protected management

• SNMP remote monitoring

• HDMI and USB secondary control interfaces

• Front-panel power, mode, status and input indicators

• Compact enclosure measuring 1.75 × 4.63 × 9.63 inches

• External 12 VDC input with locking connector

• Forced-air front-to-rear cooling

• One-year standard warranty

• Optional extended warranty
