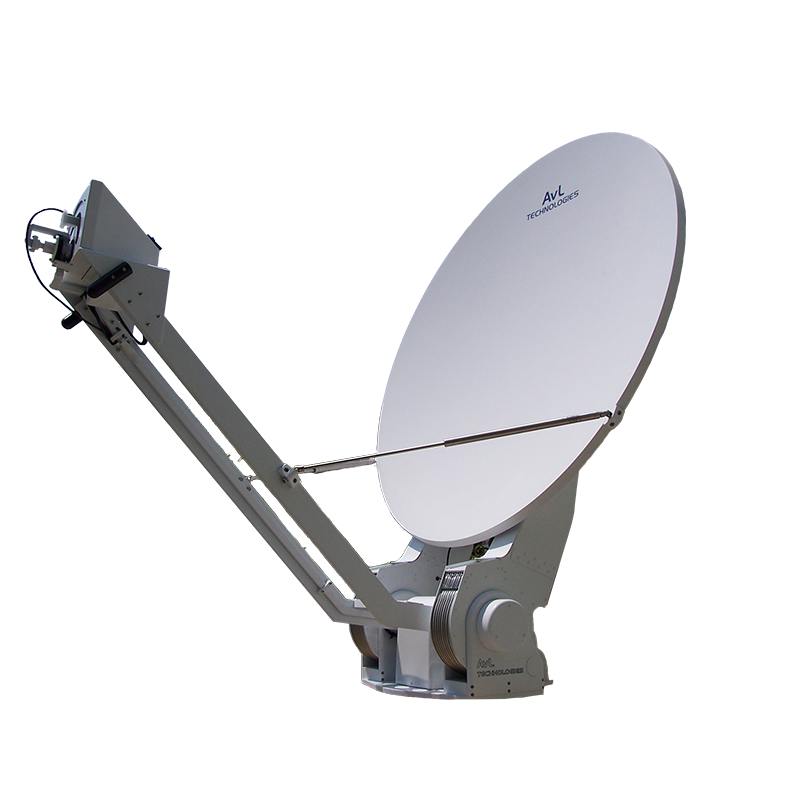

AvL Premium 1.8m Vehicle-Mount SNG Antenna

AvL 1.8m Vehicle-Mount / Drive-Away Premium SNG Antennas

• High precision azimuth bearing

• Zero backlash AvL Cable Drive with 400° Az & 0-90° El movement

• Non-load-bearing 1.8m AvL carbon fiber single-piece reflector with surface treatment for Ka-band

• Integrated reflector backing structure for minimized stow height

• Stows to 17.7" H (45 cm H)

• Wide boom to allow large HPA envelope

• Optional saddlebag mount for larger HPAs

• High-torque elevation motor

• Through-pedestal cross-axis waveguide kit

• Optional Transmit Rotary Joint on Feed

• Limited function 3-axis jog controller with auto-stow

• Optional aerodynamic cowlings

Models:

Model 1810 with 2-port precision Ku-band feed (standard Cross-Pol comp.); optional feeds include 2-port Ka, 2-port X and 2-port C

Model 1812 with 2-port mode-matched Ku feed (enhanced Cross-Pol comp.); optional feeds include 2-port Ka, 2-port X and 2-port C
