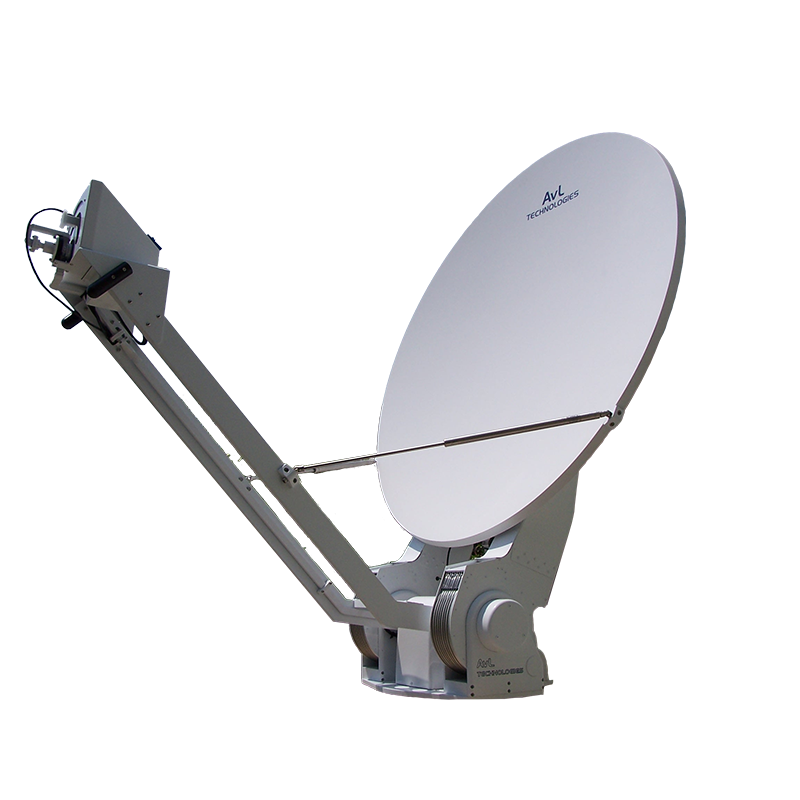

AvL Premium 2.0m Vehicle-Mount SNG Antenna

AvL 2.0m Vehicle-Mount / Drive-Away Premium SNG Antennas

• High precision azimuth bearing

• Zero backlash AvL Cable Drive with 400° Az & 0-90° El movement

• Non-load-bearing 2.0m AvL carbon fiber single-piece reflector with surface treatment for Ka-band

• Integrated reflector backing structure for minimized stow height

• Stows to 20" H (51 cm H)

• Wide boom to allow large HPA envelope

• Optional saddlebag mount for larger HPAs

• High-torque elevation motor

• Through-pedestal cross-axis waveguide kit

• Optional Transmit Rotary Joint on Feed

• Limited function 3-axis jog controller with auto-stow

• Optional aerodynamic cowlings

Models:

Model 2010 with 2-port precision Ku-band feed (standard Cross-Pol comp.); optional feeds include 2-port Ka, 2-port X, 2-Port C and 2-Port C-Band Troposcatter

Model 2012 with 2-port mode-matched Ku feed (enhanced Cross-Pol comp.); optional feeds include 2-port Ka, 2-port X, 2-Port C and 2-Port C-Band Troposcatter
