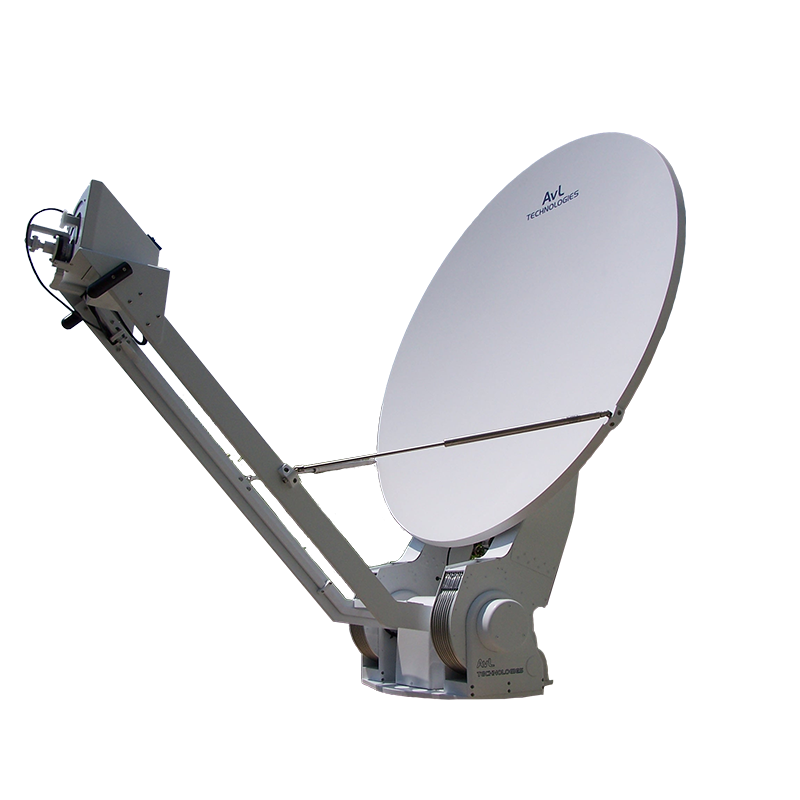

AvL Premium 2.4m Vehicle-Mount SNG Antenna

AvL 2.4m Vehicle-Mount / DriveAway Premium SNG Antennas

• High precision azimuth bearing
• Zero backlash AvL Cable Drive with 400° Az & 0-90°El movement

• Non-load-bearing 2.4m AvL carbon fiber single-piece reflector with surface treatment for Ka-band
• Optional three-piece CF reflector with removable wings, manually folding hinged wings, or motorized folding hinged wings
• Integrated reflector backing structure for minimized stow height
• Stows to 24" H (61 cm H)
• Wide boom to allow large HPA envelope
• Optional saddlebag mount for larger HPAs
• High-torque elevation motor
• Through-pedestal cross-axis waveguide kit
• Optional Transmit Rotary Joint on Feed
• Limited function 3-axis jog controller with auto-stow
• Optional aerodynamic cowlings
Models

Model 2400 C-Band/Ku-Band with 2-port precision Ku-Band (LP) feed (standard Cross-Pol comp.) and 2-port C-Band (CP or LP) Standard Band or INSAT Band; optional feeds include 4-port Ku, 2-, 3- or 4-port Ku-Band Wideband, 3-, 4-port C and 2-port extended C

Model 2410 Tri-Band with 2-port precision Ku-band feed (standard Cross-Pol comp.); optional feeds include 2-port Ka, and 2-port Extended C

Model 2410 Quad-Band with 2-port precision Ku-band feed (standard Cross-Pol comp.); optional feeds include 2-port Ka, 2-port X, 2-Port C and 2-Port C-Band Troposcatter

Model 2412 with 2-port mode-matched Ku feed (enhanced Cross-Pol comp.)
