AvL Model 1315T / 1330 1.35m Tri-Band Fly-Away Satellite Antenna

AvL Model 1315T / 1330 1.35m Tri-Band Fly-Away Satellite Antenna

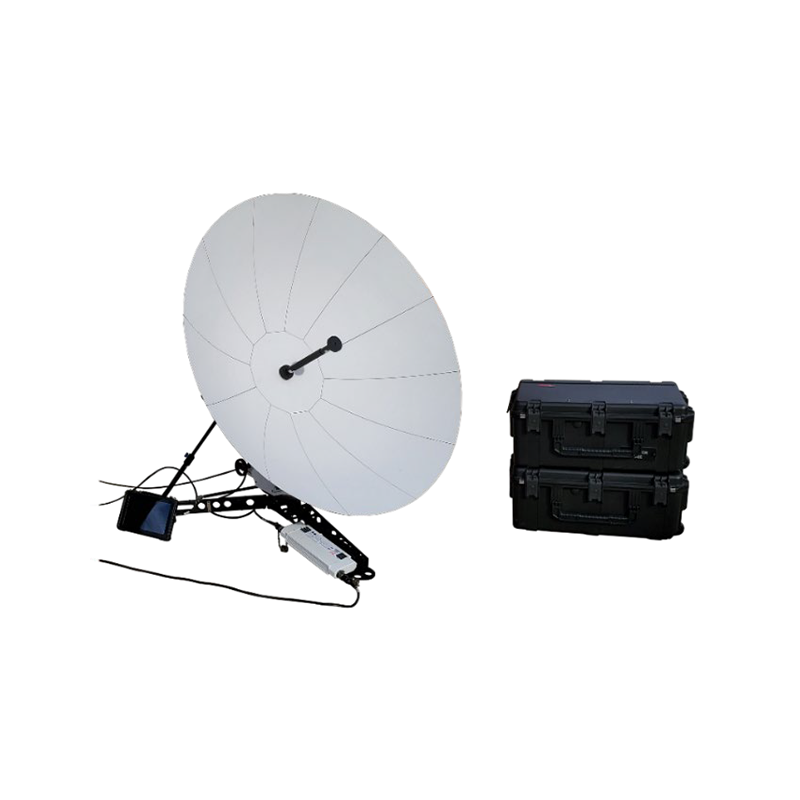

The AvL Model 1315T and Model 1330 share the same lightweight 1.35 m tri-band fly-away satellite antenna platform, designed for military, government, broadcast, emergency response, and enterprise SATCOM applications. Available in manual or motorized auto-acquisition configurations, this ultra-lightweight antenna combines a high-performance carbon fiber reflector with rugged field portability and outstanding RF performance.

The antenna features a 1.35 m axi-symmetric carbon fiber reflector, an all-in-one positioner with integrated stabilizer legs, quick-change tri-band feed assemblies, and flexible BUC, LNB, ODU, and modem integration. The Model 1315T provides precision manual pointing with the option to upgrade to motorized operation, while the Model 1330 includes the integrated AAQ1500 one-button auto-acquisition controller for rapid satellite acquisition.

Packing into two IATA-compliant airline-checkable transport cases, the antenna can be assembled by a single operator in less than 10 minutes, making it an excellent solution for rapidly deployable SATCOM terminals in demanding environments. Designed for MIL-STD-810 environments, the platform has a proven record in military, government, and broadcast field operations.

Key Features:

• Available in manual (Model 1315T) or motorized auto-acquisition (Model 1330)

• 1.35 m axi-symmetric carbon fiber reflector

• Lightweight transportable fly-away antenna

• Packs into two IATA-compliant airline-checkable cases

• Single-person deployment in less than 10 minutes

• Quick-change tri-band feed and RF kits

• Standard 2-port Ku-band precision feed

• Optional Ka-band and X-band feed assemblies

• Integrated stabilizer legs and folding tripod

• Optional AAQ1500 one-button auto-acquisition controller

• Optional Terminal Interface Unit (TIU)

• BUC, LNB, modem, and ODU integration

• Designed for MIL-STD-810 field environments

Available Configurations

AvL Model 1315T: Manual pointing fly-away antenna with optional upgrade to motorized auto-acquisition

AvL Model 1330: Motorized fly-away antenna with integrated AAQ1500 automatic satellite acquisition
