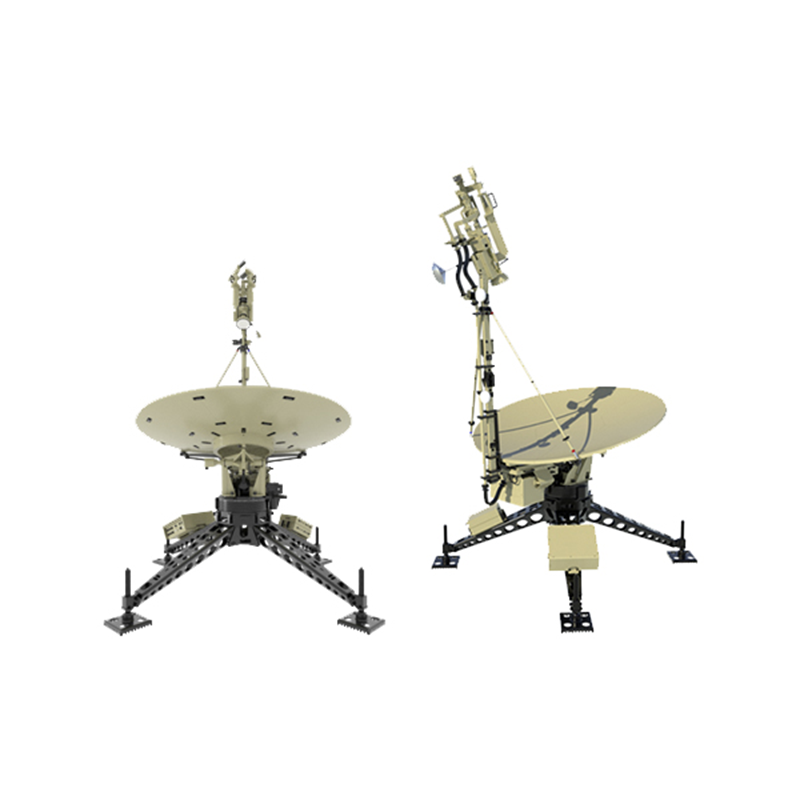

AvL Model 2460HW 2.4m Quad-Band Quadpod High-Wind FlyAway Antenna

AvL Model 2460HW 2.4m High-Wind Motorized Fly-Away Satellite Antenna

The AvL Model 2460HW is a professional-grade 2.4 m high-wind motorized fly-away satellite antenna designed for military, government, broadcast, emergency response, and enterprise SATCOM applications requiring maximum RF performance and environmental durability. Featuring a lightweight nine-piece carbon fiber reflector, precision motorized positioning system, and integrated AAQ1500 one-button auto-acquisition controller, the Model 2460HW delivers reliable satellite communications in some of the world's most demanding operating environments.

Engineered for rapid deployment, the antenna can be assembled and automatically acquire a satellite in less than 30 minutes. Its rugged cable-drive azimuth positioner, motorized feed rotation, and manual emergency backup provide dependable operation in remote field locations. Supporting L-band, S-band, C-band, Ku-band, Ka-band, and X-band RF configurations, the Model 2460HW is one of the most versatile transportable satellite antennas available for tactical communications, broadcast SNG, and government networks.

Key Features:

• 2.4 m high-wind motorized fly-away satellite antenna

• Integrated AAQ1500 one-button automatic satellite acquisition

• Nine-piece carbon fiber reflector

• Automatic cross-polarization optimization

• Deployment and acquisition in less than 30 minutes

• Motorized azimuth, elevation, and feed polarization

• Manual emergency drive backup

• Supports L-, S-, C-, Ku-, Ka-, and X-band RF configurations

• Four-port Ku-, Ka-, X-, and Extended C-band feed options

• Two-port S-band and L-band feed options

• Feed boom or rear-reflector BUC/HPA mounting

• MIL-STD-188-164 compliant

• Rugged weather-resistant transport cases

Why Choose the AvL Model 2460HW?

The AvL Model 2460HW is built for organizations that require maximum link performance and exceptional environmental resilience. Its 2.4-meter aperture, 100 mph wind survival, and AAQ1500 automatic acquisition system provide reliable satellite connectivity where smaller transportable antennas cannot. Supporting six RF bands and multiple feed configurations, the Model 2460HW offers outstanding flexibility for military, government, and broadcast missions while maintaining rapid field deployment and rugged portability.
