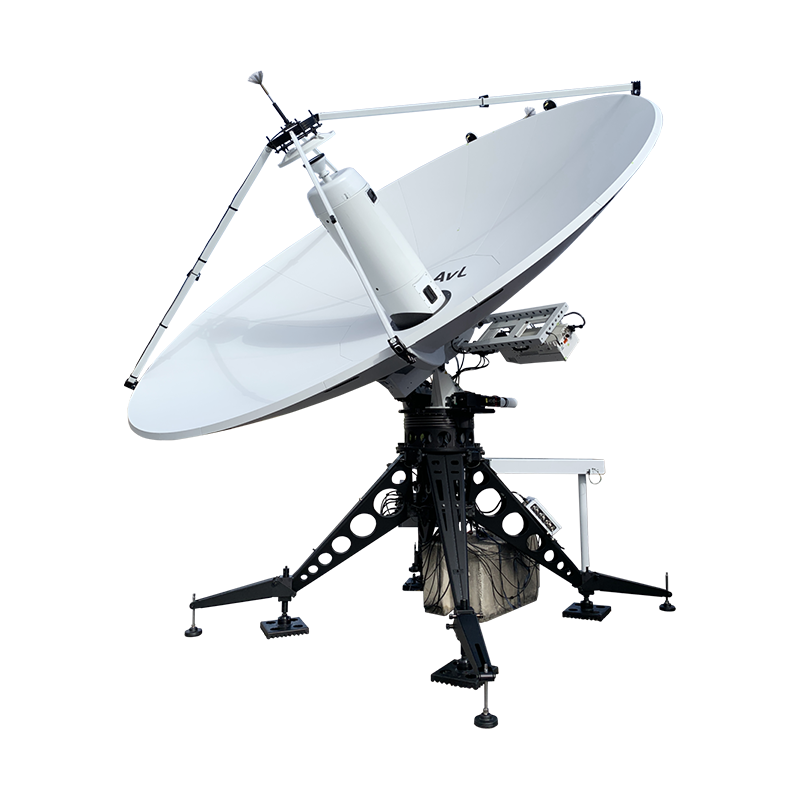

AvL Model 4660HG 4.6m Fly-Away Multi-Band Satellite Antenna

AvL Model 4660HG 4.6m Fly-Away Multi-Band Satellite Antenna

The AvL Model 4660HG is a high-performance 4.6 m motorized fly-away satellite antenna engineered for military, government, broadcast, teleport, gateway, and enterprise SATCOM applications requiring maximum RF performance and transportability. Featuring a 17-piece segmented carbon fiber reflector, precision motorized positioning system, and one-button automatic satellite acquisition, the Model 4660HG delivers exceptional gain, rapid deployment, and reliable communications in demanding operational environments.

Designed for large-aperture transportable earth stations, the antenna incorporates an axis-symmetric shaped reflector, motorized elevation jack screw, azimuth cable drive, and compact worm-gear polarization system for accurate satellite pointing. Its modular construction allows transportation on standard FedEx pallets or dual MIL-STD 463L pallets, making it ideal for rapid deployment worldwide.

Supporting a comprehensive range of interchangeable RF systems—including L/S-band, S-band, C-band, Extended C-band, INSAT C-band, C-band Troposcatter, X-band, Ku-band Precision, Ku-band DBS, and Ka-band—the Model 4660HG provides one of the broadest frequency selections available in a transportable satellite antenna. Its integrated controller delivers fully automatic acquisition, cross-polarization optimization, GPS-assisted positioning, and Ethernet-based remote management for mission-critical communications.

Key Features:

• 4.6 m motorized fly-away satellite antenna

• One-button automatic satellite acquisition

• 17-piece segmented carbon fiber reflector

• Axis-symmetric high-efficiency reflector design

• Motorized azimuth, elevation, and polarization drives

• Rugged worm-gear polarization mechanism

• Manual emergency drive on all axes

• Supports L/S-, S-, C-, Extended C-, INSAT C-, X-, Ku-, and Ka-band RF systems

• High-power HPA/BUC mounting behind reflector

• Modular palletized transport design

• Ethernet-based remote management

• Optimized for military, gateway, teleport, and broadcast applications

Why Choose the AvL Model 4660HG?

The AvL Model 4660HG delivers the performance of a fixed earth station in a transportable platform. Its 4.6-meter carbon fiber reflector, automatic satellite acquisition, and extensive RF configuration options provide exceptional flexibility for high-capacity communications. Supporting frequencies from L/S-band through Ka-band, combined with rugged construction, high-power RF capability, and rapid deployment, the Model 4660HG is an ideal solution for military, government, teleport, and enterprise SATCOM operations requiring maximum link performance and reliability.
