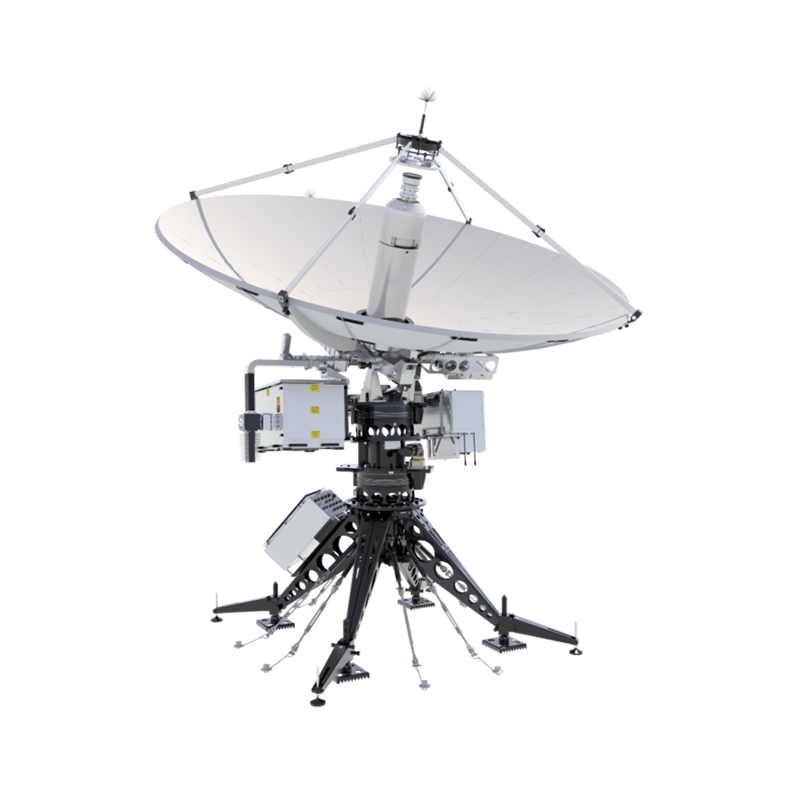

AvL Model 4670HS 4.6m Tilted-Axis S-Band Tracking Antenna

AvL Model 4670HS 4.6m Tilted-Axis S-Band Tracking Antenna

The AvL Model 4670HS is a professional 4.6 m tilted-axis tracking antenna engineered for high-performance S-band telemetry, tracking, and command (TT&C) applications. Designed for aerospace, defense, government, and satellite operators, the Model 4670HS delivers continuous hemispherical tracking with exceptional pointing accuracy for LEO, MEO, GEO, launch vehicle, missile, and aircraft tracking missions.

Built around a lightweight 17-piece carbon fiber axis-symmetric reflector, the antenna incorporates AvL's zero-backlash cable drive, precision servo motors, and an innovative tilted-axis positioner that eliminates the traditional overhead keyhole effect. This enables uninterrupted satellite tracking as targets pass directly overhead, making the Model 4670HS ideal for demanding telemetry and mission-critical tracking applications.

The antenna includes a three-port circularly polarized S-band feed, embedded AvL Intelligent Terminal Controller (ITC), and fully motorized azimuth, elevation, tilt, and polarization control. Automatic satellite acquisition, cross-polarization optimization, GPS-assisted positioning, and Ethernet-based remote management simplify deployment while ensuring reliable tracking performance in harsh operating environments.

Key Features:

• 4.6 m tilted-axis tracking antenna

• Continuous hemispherical satellite tracking

• Eliminates overhead keyhole effect

• Optimized for S-band telemetry and TT&C

• 17-piece carbon fiber reflector

• Zero-backlash AvL cable drive

• High-speed precision servo motors

• Fully motorized tilt, azimuth, elevation, and polarization

• Three-port circularly polarized S-band feed

• Embedded AvL Intelligent Terminal Controller (ITC)

• One-button automatic satellite acquisition

• Rugged transportable fly-away platform

Why Choose the AvL Model 4670HS?

The AvL Model 4670HS is purpose-built for high-speed satellite tracking and telemetry applications where conventional azimuth/elevation antennas are limited by overhead keyhole interruptions. Its innovative tilted-axis architecture, continuous hemispherical coverage, zero-backlash cable drive, and high-speed servo motors provide exceptional tracking accuracy for launch vehicles, LEO satellites, aircraft, and TT&C missions. Combined with automatic acquisition, rugged transportability, and AvL's Intelligent Terminal Controller, the Model 4670HS delivers dependable performance for demanding aerospace and defense applications.
